Multi Foot Roof Support System from HVAC Roof Supports

The Multi Foot is designed to be a multi-purpose ductwork, cable and pipework support. The Multi Foot is an extremely versatile and cost effective one-piece support available in two sizes with optional AV mats.

SMALL: 400 x 180 x 95mm Max. recommended load per foot: 77kg
LARGE: 600 x 220 x 95mm Max. recommended load per foot: 142kg

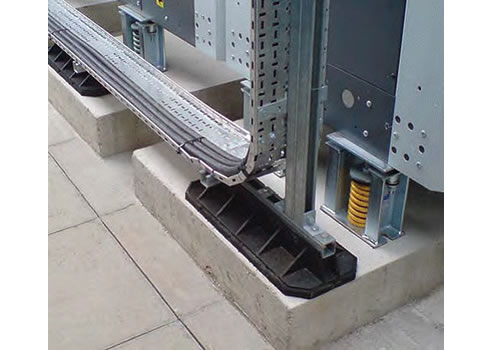

Multi Foot can be used to support small and large pipework systems, cable trays, ductwork or any combination of these.

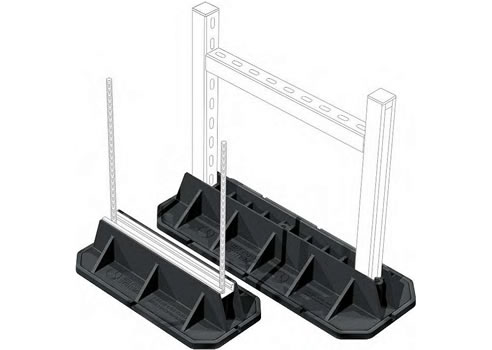

Designed to accommodate:
41mm x 41mm strut
40mm wide channel (horizontally)
12mm threaded rod (vertically)

Strut, channel & treaded rod not supplied.
