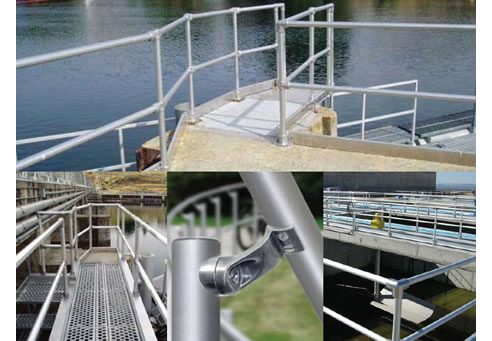

Kee Lite Safety Rail Components from Solid Dynamics

• Kee Lite Fittings are made from high grade Aluminium Silicon Magnesium Alloy.
• Recommended set screw torque is 39Nm.
• Minimum slip load capacity on aluminium tube: 7.56kN. (safety factor = 2 with tube having a minimum UTS of 275 N/mm2).
• Large grubscrews are designed to resist thread stripping
• The core range of Kee Lite Fittings has undergone independent testing by TUV.

Gaskets
BS6180:1999 (specification for guardrail in and around buildings) states that when Aluminium comes into contact with concrete the aluminium surface should have at least 2 coats of Bituminous paint applied. The simple alternative is to use a standard Kee Lite rubber gasket.

For highly corrosive environments, stainless steel grubscrews are available at a small additional charge. Kee Lite aluminium fittings are designed to suit BS EN 755 tube.

Specifying Kee Lite® Fittings
Each fitting has a simple code reference, which defines the type of fitting and the tube size, or sizes, it is designed to receive. The first part, preceding the dash (-) identifies the type of Kee Lite® fitting. A digit, following the dash, defines tube size.
