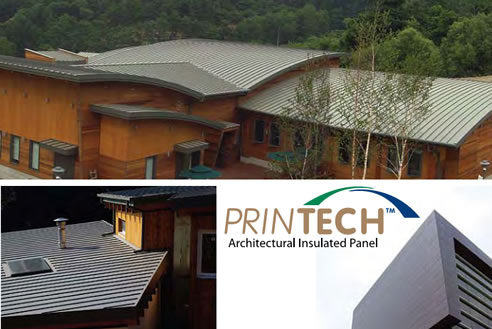

PRINTECH - Architectural Insulated Panel

The energy-wise home requires a complex of well insulated, high thermal mass, intelligent glazing and ventilation all arranged in a way that enhances comfort - anywhere in Australia.

Insulation is a paramount element for energy-wise commercial and residential structures. Lining the roof, walls and floor can reduce heat loss in winter and minimises heat gain in summer.

The principles of energy-wise come naturally to Austral, they are developed from years of experience in the controlled atmosphere industry.

Simple design techniques that can help you achieve a building that is comfortable in all seasons, using minimal energy and providing a quality lifestyle no matter where you live - and at no extra cost.

SPECIFICATIONS AT A GLANCE

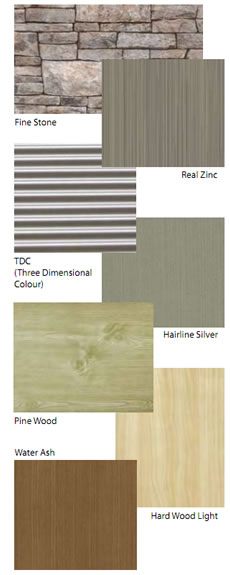

Askin can now offer sandwich panels with a printed finish. The cold rolled steel skins have paint-coated or film-coated surfaces; the galvanized or aluminium steel skins enable patterns and designs to be formed on the surface. The choice available is suitable for both internal and external application with panels laid horizontally or vertically. Finishes range from wood grain, stacked stone, granite, zinc, rusted steel etc. - our sales staff will gladly show you the sample books.

Core Material
Standard panel cores are self-extinguishing grade expanded polystyrene Class SL, manufactured to Australian standards. Steel skins are bonded to the core under pressure using a two part thermosetting polyurethane adhesive.

Other specialised cores are available on request. Generally, the lighter colours are preferred for external use, because they reflect solar radiation. Darker colours are more suited to fire rated panels such as XFlam™ and Econorock™.

The various surfaces and colour choice can influence the price per square metre - our sales staff will gladly assist you in your selection.

Skins
Sheet thickness is 0.50mm for both surface skins. Panel skins are available with a choice of embossed finish:

• Stucco
• Woodgrain and
• GR-embo.

Other options available are paint finishes such as metallic, 3-dimensional, matt and gloss.

Dimensions

• Width: 1200mm as a modular standard.
• Thickness: 38mm and 50 to 300mm in multiples of 25mm.
• Length: As required, determined by handling, design and transportation.

Profiles
Available with a flat surface finish or low profile of 0.75mm depth to either surface: 100mm Rib profile, 50mm Mesa Rib and Silkline. The Askin Slip-joint® is incorporated into the edges of both surface skins for easy installation.
