Internal Architectural and Decorative Beam 18 from Hyne

Hyne Beam 18 - Engineered timber that looks great handling long spans and high loads

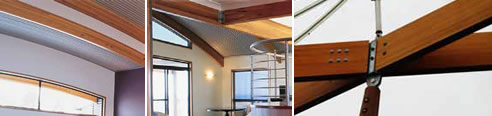

With its light colour, Hyne Beam 18 creates warmth and ambiance in stylish internal applications. Made to suit your design creativity, Hyne Beam 18 is available curved and profiled, to turn your building dreams into reality.

Builders, Architects and Designers use Tasmanian Oak/Victorian Ash laminated beams for traditional building applications in both domestic and commercial applications.

Select Grade Hyne Beam 18 has a sanded finish suitable for clear or stained finishes that highlight the beauty of the timber, when strength and aesthetics are important.

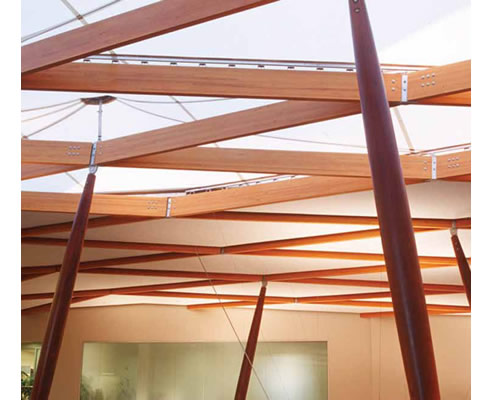

Custom made, curved, profiled, high load, aesthetically pleasing. Amazing structures are made from Hyne Beam 18.

RANGE:
C - Denotes cambered to 600m Radius (stock item)
S - Denotes straight (made to order)
Curved or custom profiles available

SIZES
65mm x
120, 155, 185, 215, 245, 270, 300, 330, 360, 390, 420mm

85mm and 130mm x
120, 155, 185, 215, 245, 270, 300, 330, 360, 390, 420, 450, 480, 510, 540, 570, 600mm

Custom sizes can be designed to suit special applications up to 1200mm in depth.

LENGTHS
0.3m increments to 16.8m

GRADES:
Hyne Beam 18 is available in two grades in accordance with AS/NZ1328.1-1998
STR - Structural Grade or Appearance C
SEL - Select Grade or Appearance A

CERTIFICATION:
Manufactured to comply with AS/ NZ1328.1-1998
Manufactured under ISO9001 Accredited Systems
Chain of Custody (CoC), PEFC / AFS

DURABILITY:
Hyne Beam 18 is manufactured from Durability Class 4 timber species and is suitable for internal applications only.

APPLICATION:
Common uses for Hyne Beam 18 include: Lintels, Bearers, Roof Beams, Rafters, Columns and Portal Frames.

STORAGE / INSTALLATION:
Hyne Beam 18 must be stored, installed and maintained as per the recommendations in Hyne Technical Data Sheets 5, 6, 8 and 9.

The Hyne Technical Data Sheets are available from Hyne Distribution Centres, Hyne staff or at www.hyne.com.au

SUBSTITUTION:
Where a Hyne specific product has been specified using Hyne Design software, a substitution with a non Hyne product will VOID all certification / warranties implied or otherwise.

AVAILABLE FROM:
Hyne Wholesale Distribution Centres and Approved Distributors.

TECHNICAL SUPPORT:
Support for the full Hyne range including Hyne Beam 18 is available from Hyne Design Software which includes Hyne Assist, or Hyne Product Information Service (HPIS) on 1300 30 HYNE (4963)
