Lowerable Light Pole EZYPole from Leadsun
EZYpole™

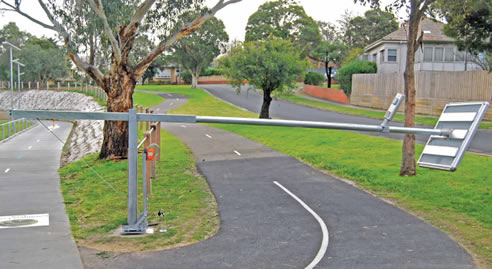

EZYpole's innovative design* provides easy
and safe access to equipment at heights
through the controlled lowering of the pole
to ground level.
*Patent Pending Design

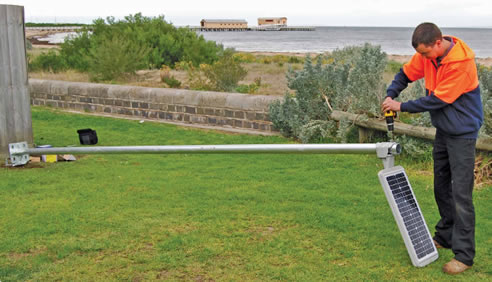

The compact portable lowering tool attaches directly to the base of the pole.
ezyWINCH™
EZY winch is a lowerable heavy duty pole with demountable winch assembly for heights of
up to 10 metres.
Key Benefits:
- Suitable for all industrial and
public access areas.
- Tilting of pole can usually be
carried out by a single operator.
- Stable structure for all types of
lighting, CCTV, Monitoring and
solar applications.
- Demountable winch assembly
allows for a safe installation
whilst also reducing costs on
multiple installations.
- Constructed in high tensile steel
and hot dip galvanised after
fabrication for durability.
- Secure lockable access panel
requires unique tool to access
internal locking mechanisms.
- Internal locking and preventative
fail mechanism for additional
security.
EZY lift can be fully assembled in under 15 minutes.
ezy LIFT™
EZY lift is a lowerable light duty hinged pole that provides fast and safe installation without
requiring any other equipment.
Key Benefits:
- Suitable for all industrial and public access areas.
- Tilting of pole can be carried
out by a single operator.
- Stable structure for light duty
applications such as CCTV
camera and LED light fittings.
- Hinged base plate design does
not require any other
equipment to assist lowering or
raising the pole.
- Constructed in high tensile steel
and hot dip galvanised after
fabrication for durability.
Example: Typical driving pins penitrate up to 1.6 metres into the ground.
ezy FOOTING™
EZY-footing provides a quick and environmentally friendly solution to support the entire EZYpole range
of products. Typical concrete footing systems need a few days curing time before the poles can be
installed, while EZY-footing allows full installation in under 60 minutes.
Key Benefits:
- Allows normal installation in under 60 minutes.
- Can handle bending moment loads of up to 700kg's & load capacities that exceed 8.5 tonne.
- No concrete.
- Reduced labour costs.
- Less trades to organise and rely upon.
- Installs with simple tools.
- Easier site set outs.
- No rain delays or foundations full of water.
- No excavation or spoils.
- No engineering inspections required.
- Suitable in all wind categories and soil types.
- Great for hard to access, sloping or remote sites.
- Instant bearing capacity so your works can continue that same day.
|
