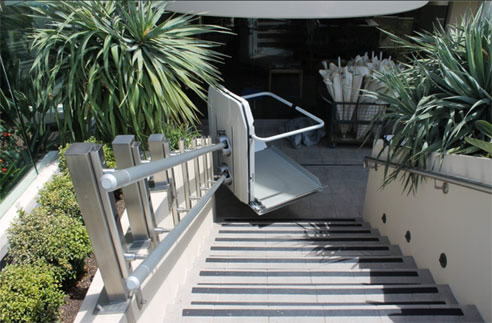

Curved Wheelchair Stairlift from Raise Lift Group

Wheelchair Curved Platform Stairlift C6

The Raise lift group are proud to supply the Cama 6, which is a curved run stairlift.

  • Travel: 0-6m
  • Compliance: AS 1735.7, BCA and DDA compliant
  • Speed: 0.11 m/sec
  • Platform size: 1200 x 810mm
  • Max stops: 3 stops max
  • Power : 240 Volt, 10 amp
  • Control system: Hold to run
  • Environment: Internal or external
  • Max load: 225 kg (2 persons + wheelchair)
  • Pit: No pit required
  • Headroom: Minimum 2000 mm

Safety features

Over speed governor and brake
Pressure sensitive surfaces which stops the lift when it runs into an obstacle
Battery driven
Limit switch
Thermal overload relay
Manual release mechanism
