Greywater Diversion Systems Melbourne from Grey Water for Gardens

Step 1

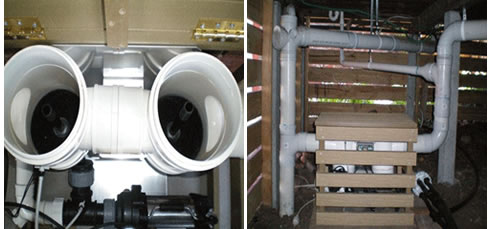

Grey water for Gardens Systems diverts grey water supplied by the bathroom and laundry to your garden where it is used to irrigate your plants. When you pull the plug on the grey water it flows down through the floor or out the wall in the wastepipes and is connected into either side or rear of our pump system, the grey water then passes through a filter to remove lint and hair, and continues to run into the pump. When the level rises in the pump well, the switch activates the pump and the grey water is pumped into the irrigation network placed around your garden.

Step 2
During periods of wet weather or when the grey water is unsuitable for your garden divert the grey water to the sewer.

Step 3
The water flows through the filters to remove all hair and lint.

Step 4
Should power supply be interrupted or the Diversion pump develop a fault, the grey water will overflow into the sewer.
