Multi-stacking Doors from Architectural Window Systems

Room with a view...
Maximise sensational harbour views with bold, wide window systems.
Evolution window systems use aws stacking doors in stunning longueville residence.

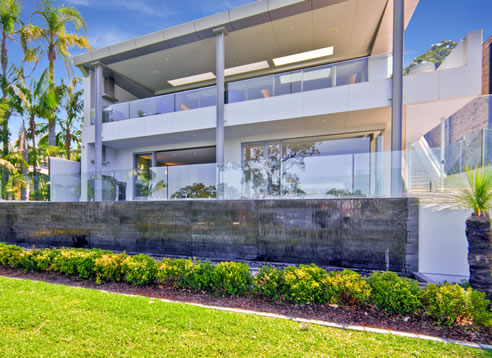

A multi-million dollar view is there to be enjoyed. That's certainly the opinion of the owners of this stunning Longueville property on Sydney's Lower North Shore.

Located on a peninsular between Tambourine and Woodford Bays, the suburb is home to many wellknown Australians and boasts some of Sydney's most spectacular views. Is it any wonder that the owners of this exceptional property wanted to take maximum advantage of the fantastic vista across the Lane Cove river to the city skyline and the iconic Sydney Harbour Bridge? Understandably, they also wanted to maintain the seclusion and privacy of the home.

Andrew Tzannes of Habitation Architecture was called in to design the project, while Walkercorp, a leading developer of residential, retail, commercial and industrial sites, handled the build.

To make the most of the impressive views, large expanses of glass and dramatic, wide opening window systems were incorporated throughout the project. The owners, who work in the building industry, were keen proponents of "sleek, modern window systems, classy hardware and ease of operation, with minimal maintenance in the future".

The extensive use of glass throughout the project presented some unique design considerations when it came to maintaining both the functional aspects of the home and the flexibility of the living environment. In addition, a multitude of high windows called for electronic opening systems to ensure ease of operation and hassle-free ventilation. Other concerns included the need for sleek aluminium window and door profiles which impacted the views as little as possible while staying true to the design and maintaining structural integrity.

AWS Commercial Series 50
Multi-stacking Doors

• Series 50 doors with 50mm thick stiles are significantly stronger than industry standard 44mm thick doors.
• There are a variety of door combinations, including a 90° corner.
• 50mm thick doors are ideal for over-height doors.
• Doors can be fitted with surface mounted deadlock, mortice lock or multi-point mortice lock.
• Doors run on heavy double bogey wheel carriages.
• Stile to rail joint is securely fixed with custom spigot assembly.
• Series 50 doors have removable snap-on glazing beads on horizontals and wraparound stiles.

The team at Evolution Window Systems was called in to help. Evolution Window Systems has supplied and installed windows and doors to Walkercorp projects for over a decade, and has built a strong working relationship with the developer.

The Evolution team recommended the use of AWS Commercial Window and Door systems. The AWS Commercial range offers commercial-grade aluminium windows and doors which delivered the strength, aesthetics and integrity demanded by the project.

Aluminium windows and doors are ideal for use in coastal applications requiring minimal maintenance and upkeep. They deliver good looks and functional operation which stand the test of time in even the harshest environment.

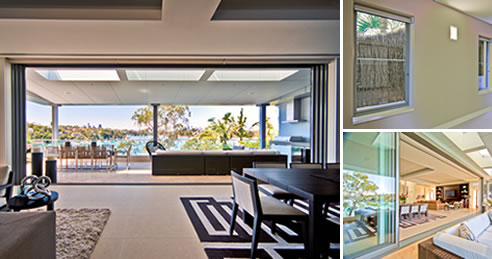

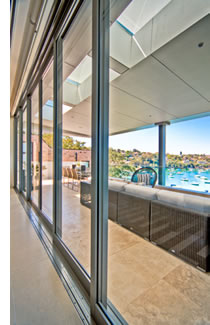

The building now boasts Series 50 Multistacking Doors - these clever 3m high stacking-door panels fold back flush with each other and open the living areas up to Sydney's breathtaking beauty. The owners were delighted that their views were not absorbed by large chunks of aluminium, and surprised at how easy it was to slide the massive panels of 10.38mm glazing.

To solve the problem of accessibility to high windows, Series 466 Awning Windows with electric winders were installed. Series 400 CentreGL AZE™ framing was seamlessly coupled with hinged doors, while sashless windows inserts were used on the Series 400 frames to provide trouble-free ventilation without masking the dramatic harbour views. All parties are extremely happy with the results. All that's left to do now is sit back and drink in the scenery.
