Flanged Dowel Boxes with Square Dowels from Danley Systems

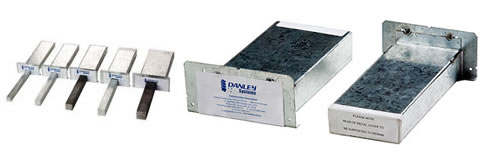

Flange Dowel Box (with square dowels)

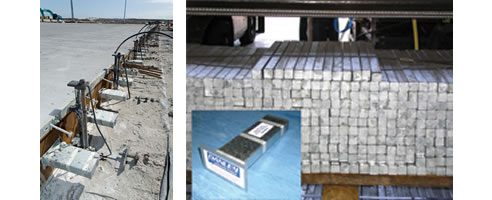

Flange Dowel Boxes are well suited for use in construction joints in both ground slabs and elevated slabs.

They are ideal for use where high loads or high movements are anticipated at the joint.

• Can be used in elevated slabs as a shear connector
• Suitable for post-tension slab joints
• Allow for large lateral movement
• Have expansion joint capability
• Available in galvanised or stainless steel
• Boxes formed from galvanised steel sheet with rigid foam void filler inside box
• Integral nailing flanges with location marks
• Available for 16 - 40 mm square dowels
• For use with square dowels only
