FlatPack low profile duct system from Fantech

The recent release of the FlatPack Low Profile duct rounds-off a range of products and systems by Fantech that are specifically and ideally suited to applications where ceiling space is restricted.

"We have been developing and supplying products such as the Smooth Flow Backdraft Damper, TD Mixvent fans, Fantech Jetstream Systems and Ezifit In-Wall fans for some time now," said Paul de Bruin, Fantech's Marketing Director. "While these products have been engineered to give the best possible airflow performance, consultants and contractors have consistently demanded more performance out of exhaust systems in high rise apartments and the like. Supplying low profile duct was the obvious next step." The FlatPack Low Profile Duct System, which includes the unique LayFlat collapsible duct, offers many advantages over alternative methods of ducting air across areas with tight, restricted space. These include:

Low Profile Design
With a profile of only 204 x 60mm, the FlatPack Low Profile Duct System allows designers to maximise the ceiling height. When compared to other methods used for ducting air such as 150mm flexible duct or storm water pipe (to reduce pressure drop), the FlatPack duct can save around 90mm in height which, over a multi-story building, could result in substantial savings.

Smooth PVC Construction
The smooth construction and tight fitting components ensure that the duct system pressure drop and air leakage is kept to a minimum. Obviously, the less resistance imposed on a fan, the greater the resultant airflow. All FlatPack Low Profile Duct System components are made from self-extinguishing PVC.

Modular, snap-together design

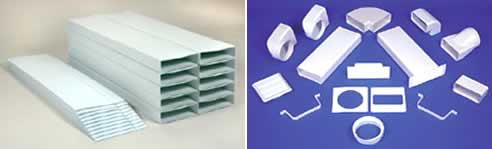

The FlatPack Low Profile Duct System has components to suit virtually every situation including rigid and flexible bends, duct connectors, rectangular to circular adaptors, T-pieces and reducers. A full list of components is shown in a brochure that is available upon request or by completing the form on the back page of Tech Talk. These components are all designed to snap together and require a minimum of duct tape to make the joints air tight.
