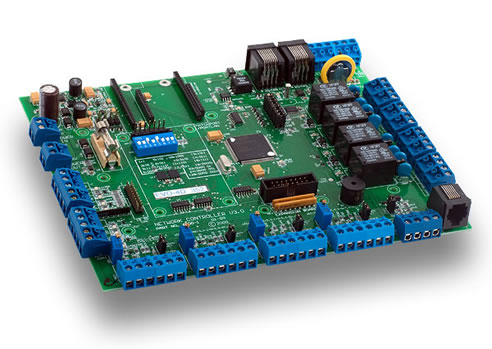

EVO4 4 Door Access Control Panel from ID-Me

Description

The EVO4 4 Door Access Control Panel provides an advanced PC programmed access control solution that will give you control over who has access to your building. With ease you can control access to thousands of doors and floors. Up to 128 EVO4 access control panels can be networked per location. With up to 50 locations the Evolution system can provide managed access control to 6,400 doors. Controllers can communicate by a standard RS232 com port, modem, TCP/IP Ethernet or Wi-Fi.

Each EVO4 controller has its own onboard intelligence it does not rely on the PC or another controller to operate. It stores all of its settings locally. The EVO4 can also function as a lift controller, and when coupled with the 16 Relay Expander it can provide access control to a maximum of 250 floors per elevator.

The EVO4 is compatible with most industry standard access control readers currently available including Wiegand, Clock & Data, Silicon Key and Presco with unlimited site codes. With 20,000 users and an event buffer of up to 12,500 events the EVO4 is the ideal solution for medium to large access control installations.

Features

• Modular design. Simply add as many controllers required;
• The 4 Door controller can also function as a lift or fire door controller;
• Each controller is intelligent and does not need to rely on a PC or other controller to operate;
• Wide Range of Readers Supported including 26 Bit Wiegand & iButton;
• Unlimited site codes;
• Up to 4 doors/readers per controller with door open too long and forced door alarms;
• 20,000 users per controller;
• Up to 128 network controllers per location;
• Up to 50 locations i.e. 6,400 network controllers;
• 250 floors per controller;
• Communicate from the PC by serial, modem, Ethernet or Wi-Fi;
• 20 standard and 20 extended time zones;
• 64 access levels per controller;
• 64 access levels per user;
• Expandable to 250 inputs and 250 relays per controller;
• Alarm integration (arm and disarm the building when you enter or exit);
• Anti-pass back support;
• Mantrap feature;
• Car parking control, Time & Attendance, lighting control & much more.
