Chasing Better Acoustic Ratings?

An effective means of acoustic isolation in sensitive environments is a chase wall. The term chase wall refers to two walls built side by side with an airspace between them, thus forming a 'discontinuous structure'. As the two walls are not linked in any way, except at the top and bottom connection to the structure, noise vibrations cannot pass through the wall structure.

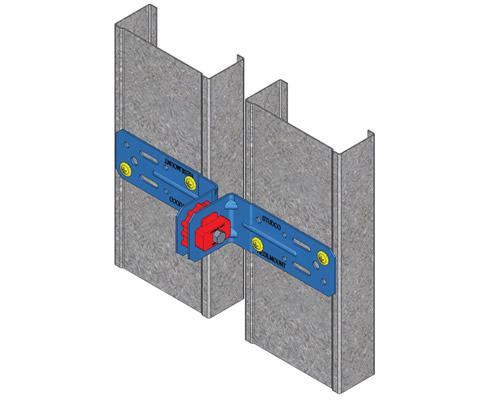

In some instances, the overall wall heights make a chase wall system unsuitable because of the extensive span. But this can now be overcome by using the Resilmount M24R chase wall bracket from Studco Building Systems. This acoustic bracket bridges between the two wall structures and braces them against each other. Using the Resilmount M24R chase wall bracket does not compromise the acoustic properties of the chase wall as a solid brace would and greater height spans can be achieved.

Talk to Studco engineers today about how you can use the Resilmount M24R chase wall bracket in your next project.

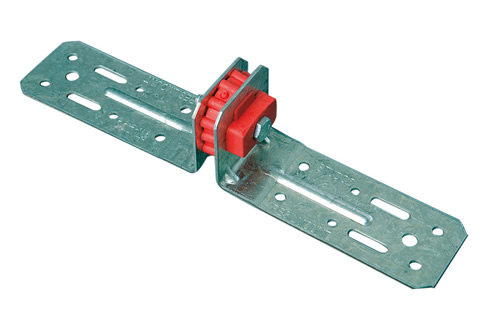

Resilmount M24R chase wall bracket
