Pre-Laminated Insulated Floor from EcoBuild Solutions

Pre-laminated insulated floor substrate panel from EcoBuild Solutions

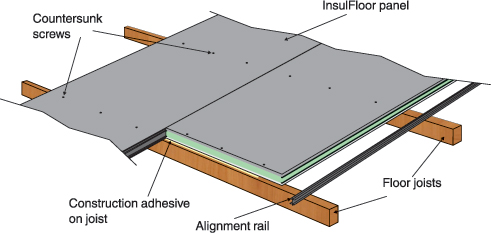

The InsulFloor system has the following parts:

  • 2400mm x 600mm panels for 300mm and/or 600mm joist centres.
  • 2700mm x 600mm panels for 300mm and/or 450mm joist centres.
  • 3600mm "H" alignment rails.

The panels are easy to handle and have a weight of only 20 kg/m2.

  • InsulFloor is a light-weight, easy-to-handle, pre-laminated insulated floor substrate panel for use in residential homes. It is a composite sandwich panel which has outstanding thermal qualities (unrivalled by other common floor substrate products) with a system R value of up to R-2.25 with an enclosed subfloor (if desired, can be increased to R-3.25 with polyweave sarking under the joists).
  • InsulFloor has excellent noise (both airborne and impact noise) insulation capability due to the damping effect of the varying densities of its components. So, no stress if the kids are running amok upstairs; you will barely hear them.
  • InsulFloor is very affordable and provides a great retum on investment by generating savings in energy consumption, frame materials (can be used to 600mm joist centres) and labour on installation (easy and quick to install).
  • InsulFloor is excellent with underfloor heating since it results in considerably less energy consumption for the same level of heat generation.
