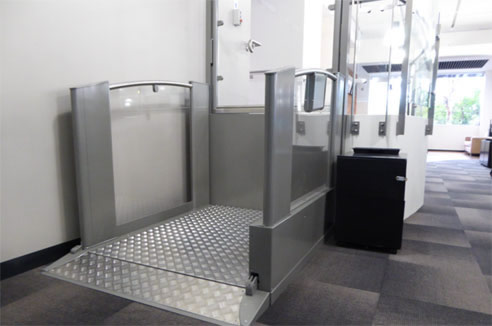

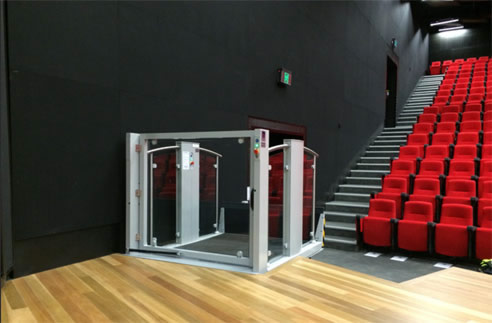

Executive Platform Lift from RAiSE Lift Group

Platform Lift

RAiSE Lift Group offer the 1M Executive Platform Lift. Providing disabled access and disability services across Australia, our lifts are DDA compliant and are registered with the appropriate bodies in each state.

Features include;

  • Travel: 0-1m
  • Compliance: AS 1735.14, BCA + DDA compliant
  • Speed: 0.10 m/sec
  • Platform size: 1100 x 1400 mm
  • Door type: Manual swing doors (optional auto)
  • Door configurations: Through-car entrances
  • Max stops: 2
  • Power : Hydraulic 240 V, 10 amp
  • Control system: Hold to run
  • Environment: Internal or external
  • Max load: 340 kg
  • Pit: No pit required on board ramp
  • Headroom: Minimum 2000 mm above top landing
