Straight Wheelchair Stairlift from RAiSE Lift Group

wheelchair stairlift

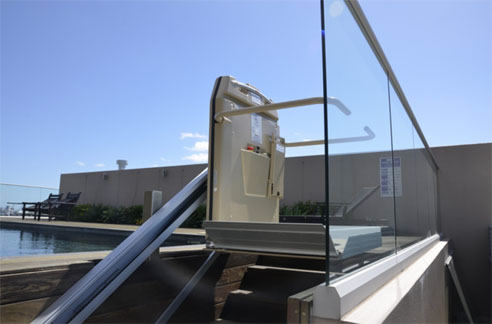

RAiSE Lift Group supplies the Cama 7. The Cama 7 is a straight run wheelchair stairlift.

Features include

  • Travel: 0-4m
  • Compliance: AS 1735.7, BCA and DDA compliant
  • Speed: 0.10 m/sec
  • Platform size: 1200 x 810 mm
  • Max stops: 2
  • Power : 240 Volt, 10 amp
  • Control system: Hold to run
  • Environment: Internal or external
  • Max load: 225 kg (2 persons + wheelchair)
  • Pit: No pit required
  • Headroom: Minimum 2000 mm

Safety features
Over speed governor and brake
Pressure sensitive surfaces which stops the lift when it runs into an obstacle
Limit switch
Thermal overload relay
Manual release mechanism
