Frameless glass for everybody plus a clamping system for glass fencing and balustrade from Network Glass

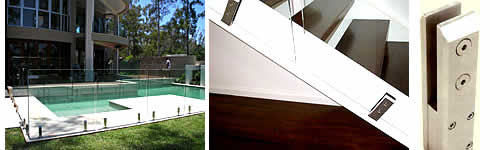

This new revolutionary system is designed to be used anywhere that a solid foundation can be provided, including decks and through gardens. Generally the clamps are screwed onto a securing pin set into a cored hole in a concrete slab, but can be adapted to attach to the side or on top of a suitable structure. The glass is then fitted into the clamp and bolted through the glass to provide a secure, rigid structure which can also support a frameless glass gate, the clamps are then locked into place and a matching grout applied.
Features:
- No inground channel required
- In most cases no additional site preparation required
- Reduced site costs (no thickening of slab and extra steel required)
- Glass installed at end of job reducing chances of any damage to glass
- Allows for water flow under the glass
- Grouting and expansion joints not required as for inground glass
- Can be installed from one side; reducing the need to scaffold
- Could be started and finished in one to two days depending on size of job
- Allows tiling to be completely finished prior to installation
- The clamps are adjustable to allow for fitting top rail in required
- All fittings are made from corrosion resistant 316 stainless steel
- Gates can be hung directly on the glass (no posts required)
- Clamps are fully adjustable to allow for variations in glass sizes
- Can be used on sloping sites with optional sloping attachment
- Can be adapted for top and side fixing on decks etc
|
|
