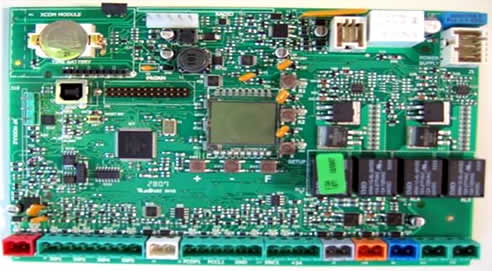

FAAC Australia Control Board E 124-24 V

The control board E 124 can be as simple or as complex as you want it depending on how many features you wish to use and it can be programmed from your computer at work or at home. E 124 24V features;

• 32 bit microprocessor.
• 2 digit LCD display.
• 12 different logics available, including a customisable logic.
• Possibility to choose a pre configured logic for:
  • Operators 413/415/770/740.
  • Operators 391/S700 H.
  • Non FAAC operators.
• Encoder management.
• Adjustable Leaf Speed (10 different settings).
• 50 different force settings.
• Connections for standard photocells or BUS photocells.
• 12 inputs:
  • 5 completely programmable (e.g. non bus accessories, loop detectors).
  • 4 for eventual travel limit stops.
  • 2 for encoders.
  • 1 for BUS connection.
• 6 outputs:
  • 2 programmable.
  • 2 for motor 1 and motor 2.
  • 1 for lamp.
  • 1 for electric lock.
• Anti Wind Function.
• Soft Touch.
• Last cycle management (you can choose the status of the gate when batteries are low).
• Traffic light management (by status outputs).
• Diagnostic table to detect errors.
• USB Port - The USB provides the possibility to connect a laptop with dedicated software allowing the installer to:
  • View all the programmed parameters.
  • Set passwords to protect the programming.
  • Save setting to a computer.
  • In-built 7 day timer function.
