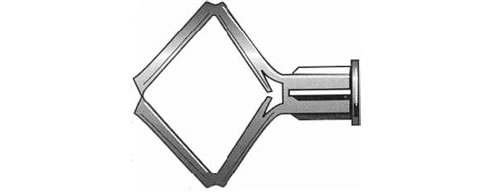

Plasterboard Fastener RamToggle™ from Ramset

The Ramset™ RamToggle™ anchor is a very versatile and strong fastener, designed for use in such sheeting materials as plywood, hardboard and plaster etc. when the reverse side of the material is inaccessible. It is also suitable for use in Solid Masonry by cutting the wings at the "elbow" joint.

It is made from Nylon and has a wide wingspan for maximum holding power. The built in anti rotation fins stop the anchor from spinning during installation and being made from Nylon the anchor is non conductive.

FEATURES

• Suitable for cavity and solid wall applications
• Wide wingspan
• Anti rotation fins
• Nylon Body
• Screw can be removed without losing the anchor
• Can be set with a setting tool

BENEFITS

• Versatile for different applications/projects.
• Maximum holding power.
• Guaranteed setting.
• Non conductive.
• This ensures that the tool is reusable.
• Operator ease

USES

Suitable for fixing:

• Curtain Tracks
• Cupboard hooks
• Notice boards
• Pictures
• Many other light duty fixings

INSTALLATION

SOLID MASONRY
Drill the correct size hole, 8mm, cut the wings at the "elbow" joint, push the cut wings together, insert into the hole, tap home with a hammer, insert screw through the fixture and tighten.

CAVITY
Drill the correct size hole, 8mm, compress wings of the RamToggle™ and insert it into the hole, tap with a hammer to ensure flush with the surface, insert the screw through the fixture, into the RamToggle™ and tighten.
