Quadstrip LED Striplight from Superlight

quadstrip led striplight

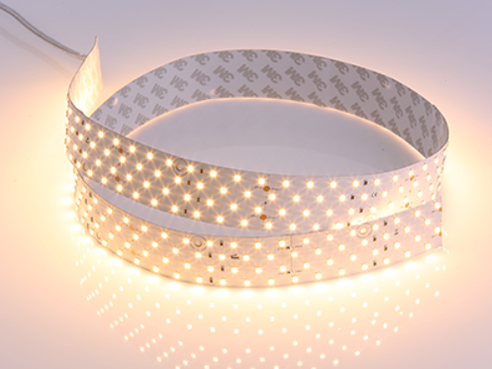

Superlight supply a special purpose LED light source called Quadstrip. Quadstrip LED Striplight is especially designed for use in larger Superlight mounting profiles. The product features precise LED array and spacing to ensure superior uniformity and smooth lighting effects when used as feature lighting within a mounting profile and opal lens diffuser.

Specifications

Input Voltage: 24VDC
Power Consumption: 26W per mtr
Dimensions: 36mm Width
LED Classification: SSC SMD LED
Colour/Finish: White PCB
Typical Light Source Efficacy: >95lm/W
Light Source Viewing Angle: 120°
Mounting Method: 3M 230 Mounting Tape
Standard Length: Superlight can supply any length
Max Single Length: 5mtrs
Heatsink Required? Yes: Use HLP Mounting Profile
Recommended Ambient Temperature: -5 ~ +55°C
IP Protection Rating: IP20
