Door access controllers from ID-ME

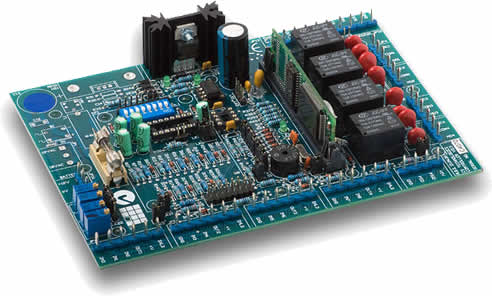

The CS Technologies access control system allows powerful management of access to doors, elevators, alarm areas and also provides very cost effective energy management. The system consists of a network of intelligent 'black boxes' each of which controls a group of doors, an elevator or alarm processor. Each controller is fully distributed, and contains all programming necessary for seamless continuous operation regardless of the rest of the system, including user credentials, access levels, timezones, public holidays and other settings.

This makes the system very reliable. The system is programmed and monitored via easy-to-use Windows based software which stores user information and provides powerful audit trail reporting facilities. A wide range of reader technologies are supported, and the system incorporates advanced features to provide high security while maintaining convenient and cost-effective access control.

Features

• Modular design (simply add as many controllers required - door/lift/alarm versions).
• Each controller is fully distributed.
• Wide range of readers supported including 26 Bit Wiegand and iButton.
• Up to 4 Readers per controller.
• 20,000 user capacity per controller.
• 50 Sites with up to 128 controllers each.
• 250 floors per controller.
• IP addressable.
• Exit request inputs.
• Relay programmable release time.
• Programmed by PC.
