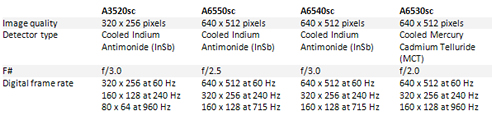

NEWS ARTICLE ARCHIVESFast Thermal Imaging Cameras from Flir Systems Australia FLIR Systems launches fast thermal imaging cameras for R&D applications FLIR A35x0sc/A65x0sc-Series The FLIR A35x0sc/A65x0sc-Series are thermal imaging cameras that are equipped with a cooled detector. They are ideal tools for industrial R&D. For those applications that need better image quality, more sensitivity and a higher frame rate than what can be obtained from a thermal imaging camera with an uncooled detector. When higher frame rates and better image quality are required Scientists can choose among the FLIR X8000 or X6000 series. The FLIR A35x0sc/A65x0sc-Series cameras are all featuring Mid-Wave Infrared Cooled detectors, thus being able to see through or at materials that no other uncooled Long-Wave camera can, like certain types of glasses or plastics. Different versions available The FLIR A65x0sc produces crisp thermal images of 640x512 pixels. Users that do not need this high image quality for their application can choose the FLIR A3520sc which produces thermal images of 320x256 pixels. All versions have a high thermal sensitivity of less than 25 mK which captures the finest image details and temperature difference information. This is only achievable with cryogenically cooled infrared detectors. External Triggering / Synchronization External triggering allows synchronization of the image capture to the most fleeting events. It is also possible to configure one camera to be master and others to be slave for applications requiring more than one camera. Snapshot operation All FLIR A35x0sc/A65x0sc-series cameras work on a snapshot mode: all pixels are registering the thermal event simultaneously. In case of moving objects or on motion applications, such cameras can avoid image blur that would occur if a non-snapshot camera would be used. GigE Vision™ standard compatibility GigE Vision is a new camera interface standard developed using the Gigabit Ethernet communication protocol. GigE Vision is the first standard to allow for fast image transfer using low cost standard cables even over long distances. With GigE Vision, hardware and software from different vendors can interoperate seamlessly over GigE connections. Software included The FLIR A35x0sc / A65x0sc cameras work seamlessly together with FLIR ResearchIR/ResearchIR Max. It allows for viewing, recording and advanced processing of the infrared data provided by the camera. Each camera comes standard with a basic version of FLIR ResearchIR. About thermal imaging Thermal imaging is the use of cameras constructed with specialty sensors that 'see' thermal energy emitted from an object. Thermal, or infrared energy, is light that is not visible to the human eye because its wavelength is too long to be detected. It's the part of the electromagnetic spectrum that we perceive as heat. Infrared allows us to see what our eyes cannot. Thermal imaging cameras produce images of invisible infrared or 'heat' radiation. Based on temperature differences between objects, thermal imaging produces a clear image. It is an excellent tool for predictive maintenance, building inspections, research & development and automation applications. It can see in total darkness, in the darkest of nights, through fog, in the far distance, through smoke. It is also used for security and surveillance, maritime, automotive, firefighting and many other applications. About FLIR Systems FLIR Systems is the world leader in the design and manufacturing of thermal imaging cameras for a wide variety of applications. It has over 50 years of experience and thousands of thermal imaging cameras currently in use worldwide for predictive maintenance, building inspections, research & development, security and surveillance, maritime, automotive and other night-vision applications. FLIR Systems has eight manufacturing plants located in the USA (Portland, Boston, Santa Barbara and Bozeman), Stockholm, Sweden, Talinn, Estonia and near Paris, France. It operates offices in Australia, Belgium, Brazil, China, Dubai, France, Germany, Hong Kong, India, Italy, Japan, Korea, the Netherlands, Russia, Spain, UK and the USA. The company has over 4,000 dedicated infrared specialists, and serves international markets through an international distributor network providing local sales and support functions. |
 |
 |
