Slimline Supportclip Substructure from StoneClip

Using the Slimline Supportclip with an adjustable substructure the most common asked question by Architects is "do you have one"?

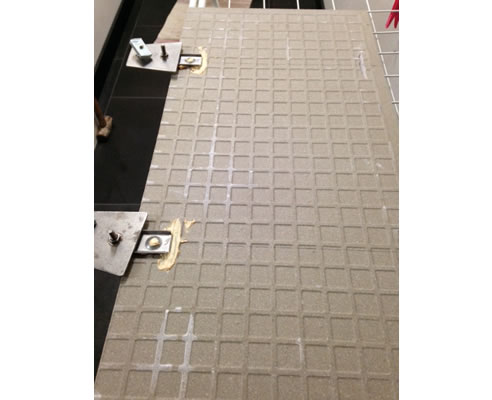

The above image shows the back of a prepared tile with the Slimline Supportclip epoxied into place and ready for erection.

The fixing on this tile ( 600 mm x 300 mm x 10 mm thick ) as shown is the 6 mm Trapezoid base plate ready to be installed onto a 41 mm x 41 mm channel, but the trouble with this method is that any correction in the vertical alignment of the face of the tile installed is only possible by shimming OUTWARDS - thus it is limited to rocked face or tool worked thin panels and not for polished or ceramics.

Read More about Support Clip Substructure
