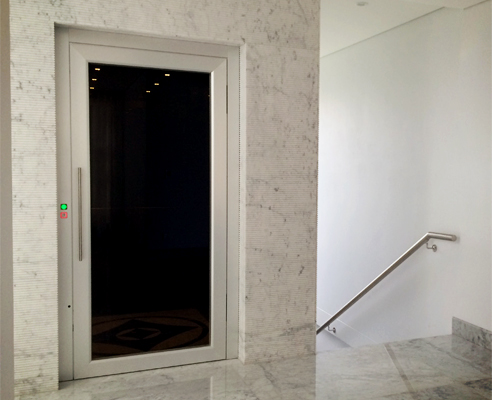

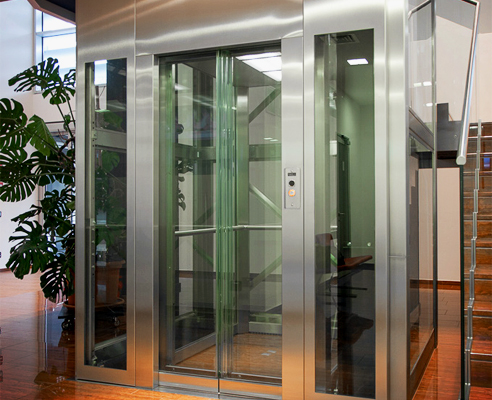

The Home Access Lift Range provides a Residential vertical transport solution for all applications in private residences. The Home Access Lift offers a range of bespoke finishes to suit any home.
The lift drive control unit is located inside the lift shaft for traction VVVF drives. Our hydraulic drive is conveniently located in a free standing control cabinet next to the lift shaft.
Functional and stylish, our Home Access Lift will compliment any space while meeting your requirements for comfort and reliability.
- Sectors:
- Compliance:
- Platform Size:
- 1100 x 1400mm - standard with flexibility to suit your specific need.
- Door Openings:
Reduced Pit and Headroom, Customisable Cabin, Low Energy Consumption
Features:
- Up to 12m travel.
- 150mm pit.
- Key switches and emergency stop.
- Battery back-up emergency lowering system.
- Low maintenance.
- Choice of 3 drive systems.
- Load rated up to 400kg.
- Custom lift cabin sizes.
- Custom floor options.
Options:
- Cabin:
- Laminate, stainless steel or glass walls.
- Mirrors.
- Additional hand rail.
- Custom bespoke options.
- Doors:
- Swing or sliding doors.
- Solid panoramic aluminium.
- Frameless glass.
- Shaft:
- Self supporting tower.
- Glass cladding.
- Powder coated cladding.
- Drive System:
- Geared traction.
- VVVF gearless traction.
- Hydraulic.
For more information, visit www.raiseliftgroup.com.au.
