Easy Stick tactiles from Floor n Stair Safety

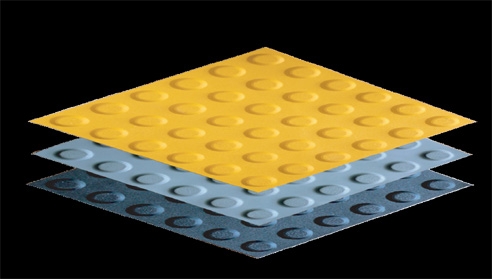

Easy Stick Tactiles are available in 3 different colours black, yellow and grey designed to provide the contrast required.

Easy Stick tactiles from Floor n Stair safety

TGSI's provide the vision impaired with a uniform system of Tactile cues.

This system has been designed to provide both directional and hazardous warning cues.

Up to 90% of people with vision impairment still retain some sight and for this reason luminance contrast can play an important part.

The Building Code of Australian/New Zealand require a minimum luminance contrast of 30%.

LAYOUT:

• Easy stick tactiles must be set out 600mm deep x the total width of stair/ramp.
• 300mm from the stair nosing at the top and bottom of stairs and
• 300mm from the change in gradient before and after ramps.
• Tactiles must be installed on landings as above, unless there are continous hand rails. On landings without doorways, the Tactiles can be reduced to 300mm deep.
