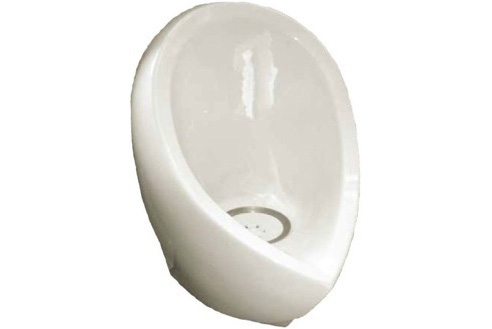

Junior Porcelain Urinal from Zeroflush

No-Water, wall-hung urinal with integral housing and drain insert

Material: vitreous china

Color: White

Dimensions: 13 W x 19.5 H x 13 D

Rough-In: For 24 lip height, drain center line must be 17 from floor.

Approximate weight: 30 lbs.

Urinals will be made of Vitreous China with dimensions of; Height- 50cm, Width- 33.8cm, Depth- 32.7cm. Weight- 13.6kg Product supplied will include ZeroFlush wall hung fixture, one unit integrated wall hanger, built in centre draining housing receptacle to accept vertical trap insert made of ABS plastic. Drain insert, drain tube, reducing rubber drain coupling, odour barrier liquid, installation, maintenance instructions and warranty. Wall hung urinal with built-in non removable trap housing with a minimum capacity of 1.4 Litres. ABS insert is to be pushed into place without locking mechanism or tools. Drain insert is to be push fit with bottom seal created when inserts embedded O-Ring is in place within drain housing. Use standard sanitation practices to maintain fixture. ZeroFlush urinal will be able to withstand periodic pouring of a bucket of water without the loss of liquid sealant. No special cleaning chemicals are required.
