Rotoscrubbers Sydney from Onslow Engineering

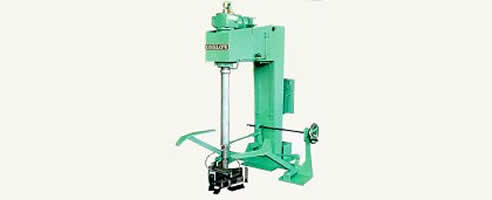

The Roto-Scrubber is a simple but very effective machine used for the cleaning of mixing tubs from approximately 50 litre drums up to 1700 mm diameter and 1700mm overall height. The pneumatically operated brush head adjusts automatically to the tub size being cleaned. Because of the units effectiveness, a very minimal quantity of solvent is required to clean tubs. Interchangeable brush heads would be required for large ranges of pot diameters.

Features

• The Roto-Scrubber is a self-contained unit designed to clean portable tubs used in the manufacture of paint, ink and similar products.
• The standard unit is suited for tubs with a maximum overall height of 1525mm and diameters 650 to 1230 or 812 to 1525mm.
• Special units are available.
• Accommodates round tubs with sloping bottom.
• Brushes in cleaning head with composite stainless steel and polypropylene brushes.
• Complete with manual or air operated tub clamp.
• Stainless steel or mild steel contact parts.
• 30 litre solvent feed tank with solenoid control valve.
• Hydraulic elevation of head with adjustable descent for the required cleaning cycle.
• Brush expanded by air control with automatic retraction before elevating.
• Normal cycle time 5-15 minutes with 2-3 litres of solvent.
• Simple robust construction with single speed operation - total power requirements 4.5 kW.
• Quality polyurethane paint finish.
