U Clip™ from Rondo Building Services

Allowing Contractors to take full advantage of its many uses, Rondo's U Clip™ adds a new dimension to the role of Rondo's Top Cross Rail (TCR), within the popular KEY-LOCK® Concealed Suspended Ceiling System.

The installation of the Rondo U Clip™ allows the carrying capacity of 127 & 128 Top Cross Rails to provide support for a variety of applications when used in conjunction with threaded M6 suspension rod and various clips from the Rondo product range.

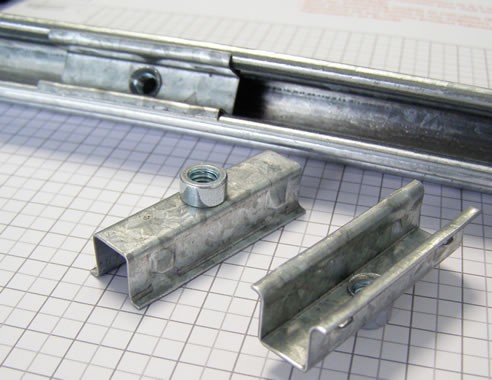

The Rondo U Clip™ is simply snapped into the underside of the TCR and then the threaded suspension rod is screwed into the clip - using either Rondo's 122 (Threaded One End) or 123 (Threaded Both End) Rods. Rondo 121 Rod that is not threaded on either end, is accommodated by pairing to 122 Rod with Rondo's 254 Joiner (also known as the 'Banana Clip').

Design tables for the Rondo U Clip are available in Channel R, the exclusive member's only area of the Rondo website - sign up today for FREE.

For more information, visit www.rondo.com.au or contact your local Rondo Office on 1300 36 7663.
