Centre Pocket Double Glazed Framing from Essential Doors & Windows

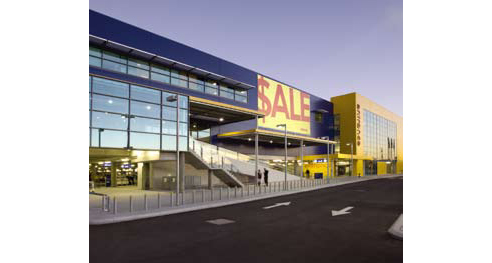

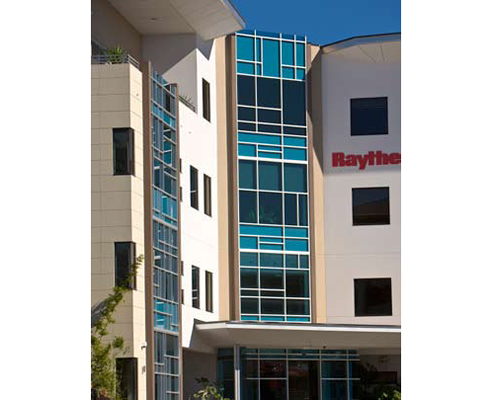

The ecoFRAMEplus is the ideal system principally when energy efficiency is paramount. It's versatility allows countless specifications to be achieved, from standard shopfront applications, through to the most challenging structural and energy requirements.

Available in two frame depths 101.6mm and 150mm x 50mm, ecoFRAMEplus allows a frame to transform from double to single glazed with ease. Glazing could not be simpler with the colour coded wedges to deal with the many diverse glass options.

With the use of heavy duty mullions the ecoFRAMEplus 150mm can allow heights to reach and surpass 4.0m depending upon wind loading conditions. Subsills are recommended for optimum weathering with all ecoFRAMEplus systems.

Key Features;
Sharp unbroken lines
4mm-12.4mm single glazed and up to 28mm double glazed options
Robust frame
Secure glazing using fully captive backing gaskets to outside of window frame
Excellent weathering
Colour coded glazing wedges ranging from 3mm to 7mm in one millimetre increments
Easily adapts to ALSPEC's awnings and hinged doors

Specifications;
For structural performance refer to the ALSPEC Technical Manual
Commercial Framing
WERS Rated
Designed to meet AS2047
