Concrete Pits and Grates from Sydney Water Tanks

SWT Concrete Pits and Grates produce a range of engineer designed concrete pits. All concrete products are manufactured at our own purpose-built precast concrete factory in Smeaton Grange.

SWT Concrete Pits and Grates are suitable for a wide range of applications including, stormwater, inspection, junction, electrical and sewer.

Although concrete storm water pits have no applicable Australian Standard, we hold product certification to both 'AS/NZS 1546.1 Small septic tank' and 'AS/NZS 1546.3 Aerated Wastewater Treatment Systems' Standards.

The concrete pits are manufactured under the same Quality Assurance procedures as the certified products. We are committed to providing the highest level of quality across all of our production processes.

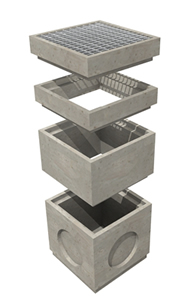

Riser rings are available in a variety of sizes for all pits. SWT Concrete Pits and Grates will interpret your hydraulic drawings and precast inlets and outlets for detention control pits (DCP). The DCP will arrive onsite ready to connect.

Features

Quality:

• Pits are wet cast using steel reinforced 40mpa concrete to prevent shattering when knocking out holes
• Steel reinforcing is engineer designed to ensure strength and durability
• Each pit has two swift lift type lifters
• Knock outs on all sides
• Hot dipped galvanised grates have been tested to the requirements of AS3996.2006

Safety:

• Smooth concrete finish inside and out. No missing chunks, protruding fibres or sharp edges
• Steel bar safety cage
• Manufactured to the highest quality protocols

Choice:

• Risers available
• Optional precast inlets and outlets to suit your engineer's requirements
• Delivery and unloading onsite by our crane trucks when required.

Internal Dimensions

Length: 450
Width: 450
Depth: 600
Risers: Not available

Length: 600
Width: 600
Depth: 600
Risers: 150, 300, 450, 600

Length: 900
Width: 900
Depth: 900
Risers: 150, 300, 450, 600

Grate Classes

See Table 3.1 AS3996-2006 for Load Classifications

Class: A
Description: Extra light duty
Load Classification: Pedestrians and pedal cyclists, closed to other traffic

Class: B
Description: Light duty
Load Classification: Accessible to vehicles, excluding commercial vehicles and livestock

Class: C
Description: Medium duty
Load Classification: Malls and areas open to slow moving commercial vehicles

Class: D
Description: Heavy duty
Load Classification: Carriageways of roads and areas open to commercial vehicles
