Austvision Spider Tension Truss System from Australian Glass Assemblies

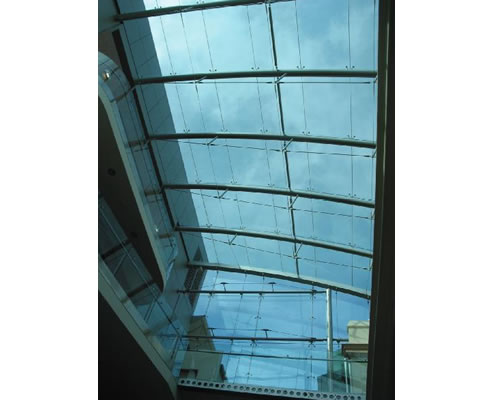

The Austvision Tension Rod Truss Glass Facade System is supplied with suspended point fixed glasswith high tension stainless steel vertical rod trusses as wind bracing. The tension rod system utilisestwo pre-stressed catenaries that carry inward and outward wind loading. Loads are transferred fromthe glass through Austfix countersunk screws to compression struts. The dead load of the glass iscarried by the top hung vertical tension rods connected to the point fixed castings. The trussjunctions consist of a combination of machined and cast components.

• The flexibility allows the Austvision Spider Austfix Tension Rod Truss System to be designedas a vertical and/or horizontal truss support.
• Provides a larger scope of architectural expression.
• By employing high performance building materials it removes the heavy wall structures andreplaces it with a lightweight tension truss system.
