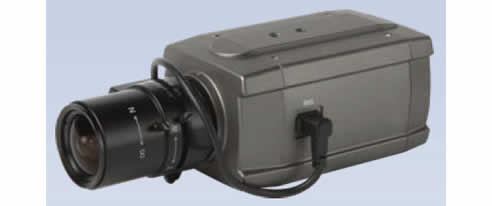

1.3 Megapixel IP Camera CCD Image Sensor from Technologix

KCC-MIP13 is 1.3 Megapixel network camera implemented by H.264 and MJPEG compression technology over the IP Network such as ADSL, VPN, they provide the optimal video transmission quality with their highly effective video compression features and more increased adaptability to the existing networks.

Together with Internet Explorer or dedicated CMS (Central Monitoring System) S/W, TCAM-531 provides a flexible and quality-proven way to monitor remote site.

Features

• H.264/JPEG compression Algorithm
• 1/3" 1.3M SONY Progressive CCD Image Sensor
• Video bitrate: 32kbps - 8Mbps
• Serial data bandwidth : 2,400bps - 115,200bps
• Protocols : TCP/IP, Multicast, HTTP, SMTP, FTP, DHCP, DNS, Dynamic DNS , RTP, RTSP
• WDR (Wide Dynamic Range) Supported
• Web-based viewer (Internet Explorer)
• True CMS : Upto36 channels live monitoring, recording, search & playback
• Motion Detection
• Sensor input terminals
• Alarm output terminals
• 1 channel audio in/out (mono, line in/out)
• Serial data bandwidth : 2,400bps - 115,200bps
• Intelligent bitrate control
• RS485 terminals
