Discrete Tactile Indicators from TGSI South Australia

We supply and install both hazard and directional discrete tactile ground surface indicators. Our discrete tactiles comply with AS/NZS 1428.4:2002 and have been subjected to relevant material and physical testing procedures. Tactiles in our discrete range have been designed to create a combination of high mechanical strength, long lasting durability and performance, along with high aesthetic appeal.

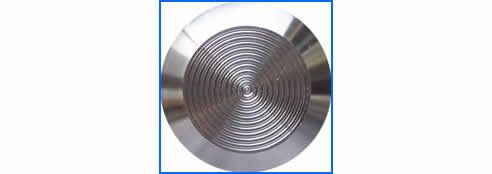

ENDURA:

• Dimensions: 35mm diameter X 4.5mm height
• Metal types: Solid 316 grade stainless steel
• Finish: Machine
• Type: Hazard
• Location: Indoor and outdoor
• Suitable substrates: Concrete, bitumen, ceramics, stones, woods, plastics, steel.
• Underside: 12mm stem, or flat underside.
• Slip resistance rating: R13, V
• Notes: Rugged tactile suitable for all environments. High aesthetic appeal. Economical.

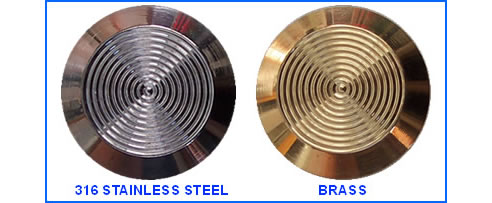

Polished Series:

• Dimensions: 35mm diameter X 4.5mm height
• Metal types: Solid 316 grade stainless steel, or quality brass
• Finish: Polished
• Type: Hazard
• Sides: Smooth
• Location: Outdoor, indoor
• Suitable substrates: Concrete, bitumen, ceramics, stones, woods, plastics, steel.
• Underside: 12mm stem with O-ring, or flat underside
• Slip resistance rating: R12
• Notes: One piece cold forged construction. High aesthetic appeal.

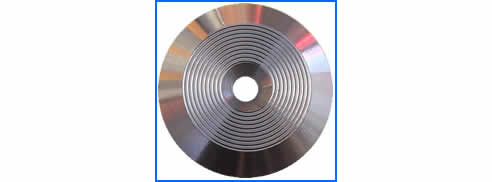

ECONO-TAC:

• Dimensions: 35mm diameter X 4.0mm height (custom height available)
• Metal types: Solid 316 grade stainless steel, or quality brass
• Finish: Machine
• Location: Indoor, outdoor
• Suitable substrates: Most effective on wood based substrate (wood, carpet/ wood, vinyl/ wood etc.)
• Underside: Flat with hole in centre (screw in fixation)
• Notes: Versatile, economical. Screws and plugs also available.

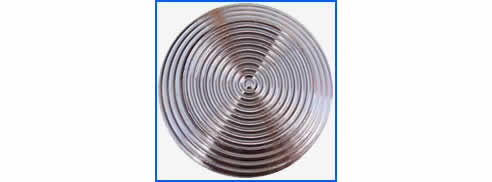

Ribbed sided:

• Dimensions: 35mm diameter X 4.5mm height
• Metal types: Solid 316 grade stainless steel, or quality brass
• Finish: Polished
• Type: Hazard
• Sides: Ribbed
• Location: Outdoor, indoor
• Suitable substrates: Concrete, bitumen, ceramics, stones, woods, plastics, steel.
• Underside: 12mm stem, or flat underside
• Slip resistance rating: R12
• Notes: Cold forged construction. High Aesthetic appeal.

Directional Bar:

• Dimensions: 35mm diameter X 4.0mm height X 285mm long
• Metal types: Solid 316 grade stainless steel
• Finish: Machine
• Type: Directional
• Location: Indoor and outdoor
• Suitable substrates: Concrete, bitumen, ceramics, stones, woods, plastics, steel.
• Underside: Flat
• Notes: High quality Australian made product. SS screw cover caps, screws and plug available.

Other discrete tactiles available include: HIGH GRADE POLYURETHANE (HAZARD & DIRECTIONAL), RANGE OF COLORS. 316 grade SS with black carborundum insert also available.
