Concealed Automatic Gate Motor Systems from ABA AutoGates

If you prefer "hidden" versions, the ideal models are CUBIC geared motors that, housed under the gate, reliably open the gate to which they are secured.

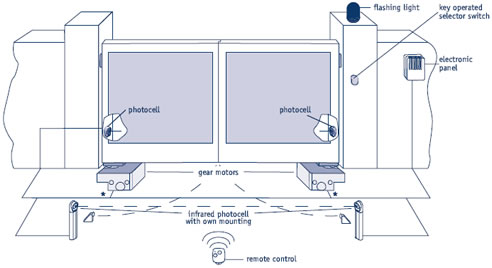

CUBIC is an underground, electromechanical system specially designed to "invisibly" move any type of swing gate or main door with no need to install external actuators onto the gate or post.

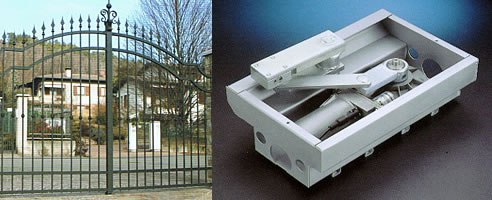

The system is composed of a strong geared motor, housed in a foundation casing beside the gate pier; this geared motor, through a special kynematic group or gear system, causes the rotation of the gate leaf.

Should a failure occur, the gate can be manually opened or closed by releasing the geared motor mechanism by using an extended key control or powering the geared motor (DC) with batteries.*

The "concealed" solution allows the movement of valuable gates, both modern and traditional, without modifying their aesthetics.

Features:

• "Totally Concealing" system
• Possible gate leaf opening up to 180°
• Gate leaf adjustable speed (DC)*
• Starting at max power (MPS)*
• Adjustable obstacle detection (ODS)*
• Stainless Steel embedding box optional
