Outdoor CCTV Dome Camera from ID-Me

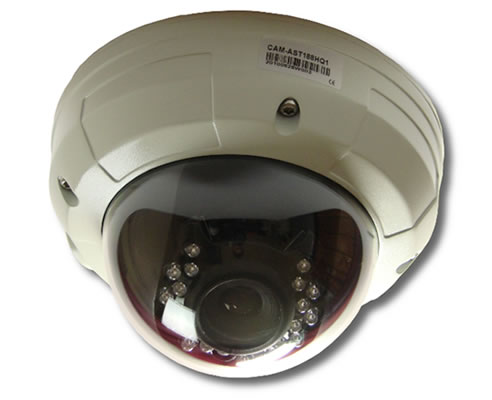

AST188HQ1 3 Axis Outdoor Dome with IR

The AST188HQ1 3 Axis Colour Dome CCTV Camera is housed in a vandal & weather resistant enclosure. It features Infra-Red (IR) LED illumination up to 20 metres, a 1/3" Sony Super HAD CCD with 540TVL resolution & an auto-iris Computar 4-9mm varifocal lens. The AST188HQ1 has a tough polycarbonate dome mounted on an aluminium body that provides IP66 protection, making the camera ideal for use outdoors or harsh indoor environments. The video and power cables can be accessed from the base of the camera, or the side where there is a threaded 20mm conduit entry. The AST188HQ1 is a professional CCTV camera in a convenient package. It provides a high resolution image and is suited to installations in pubs & clubs, warehouses and offices.

Features:

• Tough 3 axis dome camera with Infra-Red illumination to 20m
• IP66 rated, making the AST188HQ1 suitable for outdoor applications
• Polycarbonate dome on a cast aluminium body
• Cable entry from base or side of camera
• Pick-up Device: 1/3 Sony Super HAD CCD
• Video Output: 1.0Vp-p/75 Ω Composite
• Synchronization: Internal
• Horizontal Resolution: 540TVL
• Pixels: PAL:752(H) x 582(V)
• Minimum Scene Illumination: 0 Lux
• Lens: Computar 4-9mm varifocal
• Lens Aperture: f2.0
• Infra-Red (IR) Wavelength: 850nm
• White Balance: Auto tracking
• S/N Ratio: 48dB (AGC off)
• Operating Humidity: 90% Non-Condensing Max
• Operating Temperature: -10°C to +50°C
• Power Supply: 12 Volts DC
• Current: 110mA with IR LED's off; 300mA with IR LED's on
• Dimensions: 155 x 149 x 98mm
