Thermal Spacers Dow Styrofoam™ Deckmate 300 from DCT

Dow Styrofoam™ (XPS) Deckmate Thermal Break Strips are designed specifically to reduce the thermal loss on metal deck roof applications.

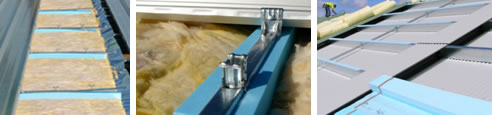

Depending upon the construction method, in some metal deck roof construction the insulation blanket can be compressed which can reduce the thermal performance of the roof system. The use of Dow Styrofoam™ Deckmate Thermal Break Strips on top of each purlin above the insulation blanket will ensure that sufficient room is allowed for the insulation blanket to recover to its nominal thickness and that stated R-Values are achieved.

Dow Styrofoam™ Deckmate Thermal Break Strips are made from high compressive strength 300 kPa Styrofoam™ brand extruded polystyrene insulation.

The strips are a closed cell structure meaning that they won't absorb moisture thus retaining their thermal performance. Testing has been conducted by the majority of the manufacturers of roofing systems throughout Australia and the addition of Dow Styrofoam™ Deckmate Thermal Break Strips will not affect the warranties of these manufacturers.

Dow Styrofoam™ Deckmate Thermal Break Strips are specifically designed with a high compressive strength and do not absorb moisture which tests have shown to be vital for this application.

Applications

• Metal deck roofing applications

• High compressive strength
• Long term retained R-Values
• Superior water resistant properties
• Dimensionally stable
• Will not attract vermin or insects

Product Name: Dow Styrofoam Deckmate - Thermal Break Strips

Product Description: Designed specifically to reduce the thermal loss on metal deck roof applications. Depending on construction method, in some metal deck roofs the insulation blanket can be compressed, which can reduce the thermal performance of the roof system. The use of DOW Deckmate 300 Thermal Spacers on top of each purlin above the insulation blanket will ensure that sufficient room is allowed for the insulation blanket to recover its nominal thickness and that stated R values are achieved.

Surface finish: Planed
Product code: Deckmate Thermal Break Strips
Colour: Blue
Edge treatment: Butt edge
Dimensions:
6mm x 38mm x 2500mm
25mm x 75mm x 1250mm
25mm x 75mm x 2500mm
40mm x 75mm x 1250mm
40mm x 75mm x 2500mm
50mm x 75mm x 1250mm
50mm x 75mm x 2500mm
75mm x 75mm x 1250mm
75mm x 75mm x 2500mm
100mm x 75mm x 1250mm
100mm x 75mm x 2500mm
Density: 32 kg/m²
Compressive strength: 300 kPa (min) @ 10% deformation
Water absorption: < 0.3%
