Audio Intercom Kit by Commax from ID-Me

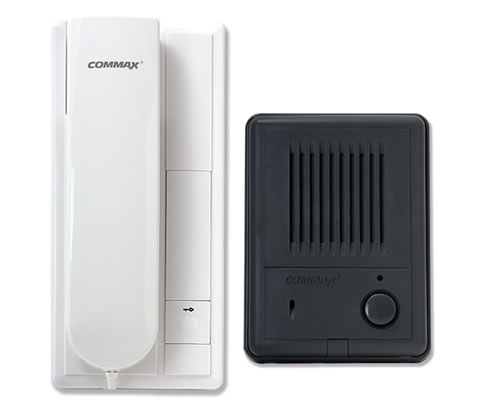

The Commax DP2KN-DR2KS 1-1 audio intercom kit includes the DP2KN audio handset and the DR2KS surface mount plastic door station. The DP2KN is a 2 wire surface mount audio room intercom station. There is a door release button on the handset base. The xylophone audio chime has a volume adjustment.

A second DP2KN handset can be added to the system, however there will be no audio communication between handsets. If 2 handsets with inter-communication is required then the DPRA01M master & DPRA01SD sub station will fit the bill.

The Commax DR2KS is a plastic surface mount audio intercom door station. The door release function provided by the DR2KS is a normally open contact with the latch being powered from the unit.

The system requires a 12VDC power source, which is not supplied as part of the kit.
