Tudor Roof Tile by Monier from Lacey Roofing

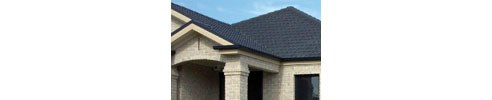

Defined, geometric lines make the Tudor roof tile the perfect choice for both traditional and modern home designs. Available in 4 colours and developed to accommodate a variety of roof pitches, the Tudor profile will not only deliver a roof line that looks great, but is guaranteed to perform.

Specifications:

Coverage: Approx. 10.6 tiles/sqm.

Dimensions: 329mmW x 420mmL

Mass: 4.5kg

Lap adjustment: Minimum head lap should be 75mm. This may increase according to set out, however head lap should not exceed 110mm.

Bond: Straight Bond or Cross Bond.

Roof Pitch: 15 degrees to 20 degrees: sarking required. Greater than 20 degrees: sarking optional. Always check rafter to pitch ratio, exposure of site and Local Government requirements.
