Supportclip on Adjustable Substructure from Stoneclip

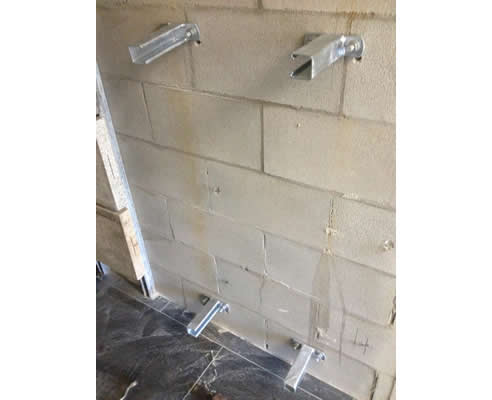

Shows the channel base plates bolted to the concrete block wall@ 300 mm centres exact

door window security

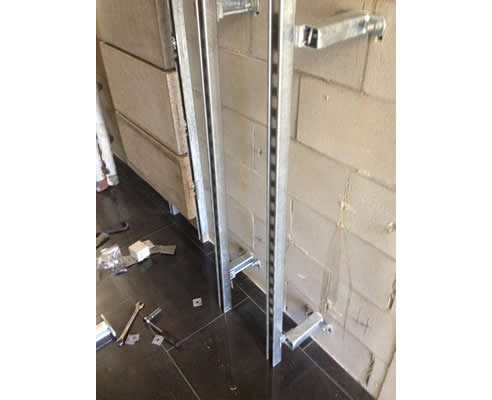

Shows the vertical channel bolted to the base plates. This channel can move in and out from 70 mm cavity out to 200 mm in this form

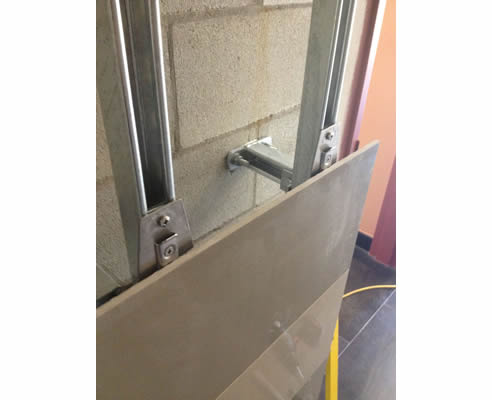

Shows the vertical channel after it has been plumbed and the fixings to hold the panel onto the channel

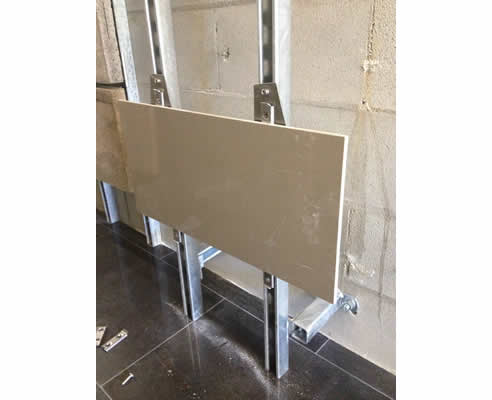

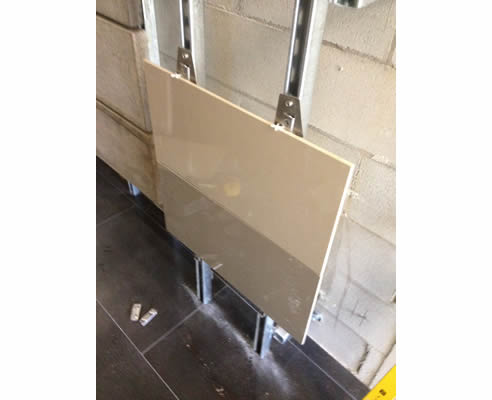

Shows the first panel installed onto the channel. The panel is only fixed load wise at the top, the bottom doesn't carry the load, only position

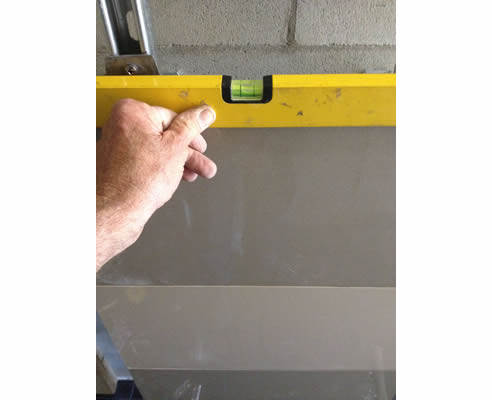

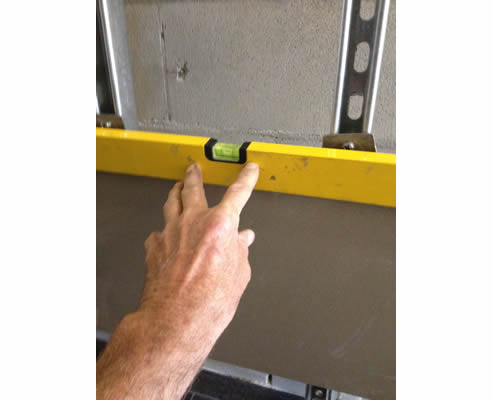

Shows the top of the first panel level and all the rest will follow

Shows the second panel installed at 3 mm joint width. Spacers only needed while installing for position

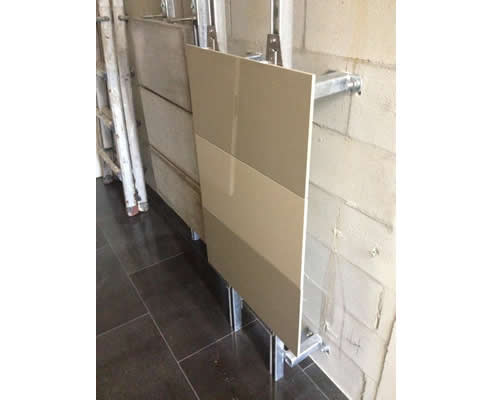

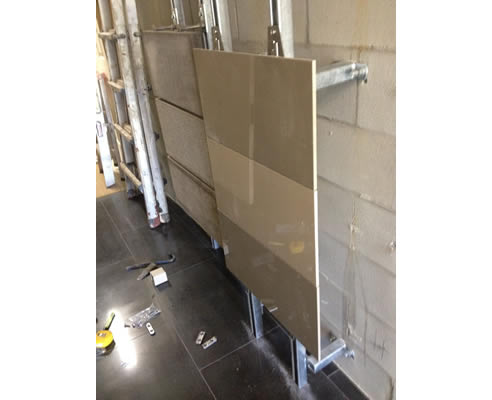

Shows the 3rd panel installed

Shows that the panels are still level as all are cut with the same machine

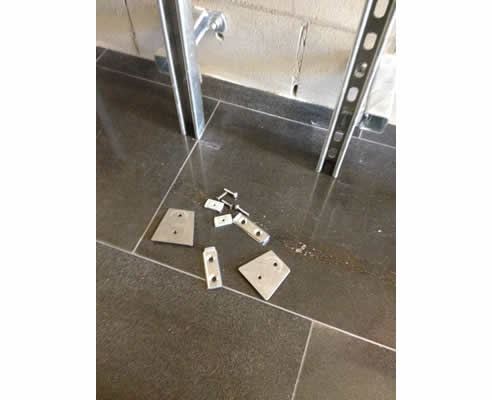

A close up showing the base plate onto which the Supportclip fixing is mounted with the countersunk screw

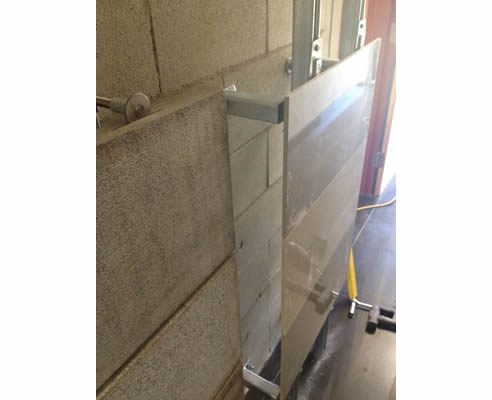

A side view showing how perfectly plumb the panels are

Another view showing how perfect you can erect
