Efficient Dowel Systems Brisbane from Danley Construction Products

Danley® Diamond® Dowels offer the most efficient dowel system available and are well suited for construction joints.

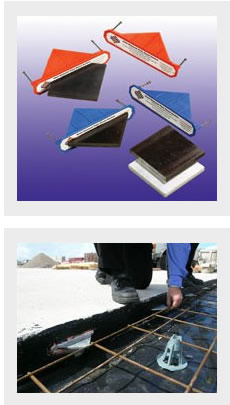

- Available with colour coded one-piece PVC sleeves; 6 mm orange and 10 mm blue

- Sleeves moulded from durable, non-compressible PVC

- Available in black, galvanised and stainless steel

- Dowel plates available in black, galvanised and stainless steel

- High load capacity

- Minimise differential deflection between slabs

- Allow two directional movement in the horizontal plane

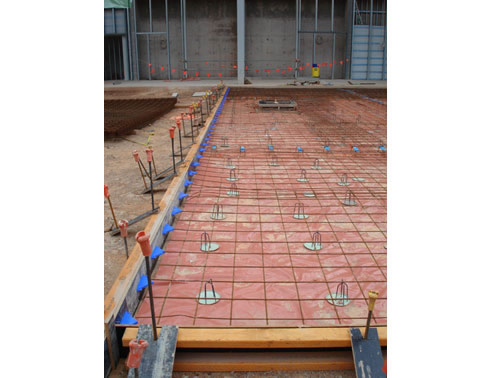

- Ideal for perimeter-of-pour dowel applications, i.e. at construction joints

- No need to drill forms to support dowels during concrete pour

- Nailing flange provides secure attachment to form boards

- Flange on sleeve ensures dowel is perpendicular to form board and is stable

- Each sleeve is fitted with an internal spacer to prevent collapse caused by pressure of concrete - the spacer is easily displaced into the apex of the sleeve when inserting the Diamond® plate

- Sleeves fitted with double-headed nails - second head on nail acts as an anchor to help retain the sleeve in the concrete when stripping the form boards

- Reduced likelihood of sleeve knock-off when placing steel reinforcement mesh

- Simplifies form removal

- Wide dowel plate at point of maximum load reduces stress on concrete

- Can be integrated into other formwork systems

- Ergonomically designed, user-friendly packaging, complete kit with installation instructions

- Supplied with fixing nails
