Aluminium Interior Shutters Sydney from Spacespan

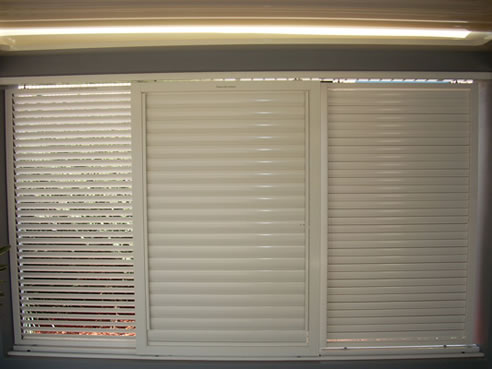

The Mini Louvre range in 75mm and 100mm provide an all aluminium interior and exterior option to timber louvres.

Innovation in design, Sun Louvres are operated by the award winning, simple to use, hand opening SimpleX™ Pivot System. This state of the art system has been specifically designed for use in a range of louvre sizes from 75mm to 150mm, enabling LouvreSpan systems to clear span to unprecedented lengths for hand operated window and door shutters.

You can extend your interior and exterior design options to a wide range of architectural applications.

They can be used as shutters for windows, doors for wardrobes and doors onto your patio. In fact, anywhere you use timber louvres you can use LouvreSpan Mini Louvres.

The 200mm and 300mm Airfoil Louvre along with the two part 600mm Airfoil Louvre come together to form the Maxi Louvre systems. These new generation Maxis are distinguishable with clean symmetrical lines and fine leading edges.

From designer kitchens to high rise protection in cyclonic regions, the elegant and robust Maxi Louvres have it all.

Shutters Features and Benefits

75mm MINI LOUVRE

- The LouvreSpan 75mm Mini Louvre is compatible to all standard residential (42mm) aluminium joinery
- Easy to retrofit any opening
- Hand operated
- End fixed

100mm MINI LOUVRE

- The LouvreSpan 100mm Mini Louvre System is compatible to all standard residential (42mm) aluminium joinery
- The Advanced Pivot System (APS) provides fully concealed hand operated opening
- Unique bracket fixing option available, hidden fixings with blades to any pitch or centre
- End fixing to any pitch or blade centre

200mm MAXI LOUVRE

- Designed to span up to and beyond the 3m module size used on many commercial installations
- Helix Pivot 240v motorised or hand operated
- Blades rotate to 180 degress limited only by blade by blade contact
- May be End Fixed or Bracket Fixed to any pitch or centre
- Available powder coat or anodised finish.

300mm MAXI LOUVRE

- A larger version of the 200mm Maxi
- Includes all the features as outlined above, with increased spanning capacity
- Extruded as a single piece triple box section.

600mm MAXI LOUVRE

- This powerful two piece extruded louvre perfectly rounds off the LouvreSpan range
- The 600mm Maxi features the same fine styling of the 200mm and 300mm louvres
- Available Bracket Fixed on a custom designed strut giving fixing to any pitch or centre
- Can be End Fixed to any pitch or centre
