Flexible Automatic Doors with Self Repair from Automatic Doors

Introducing DITEC SMART RESET - High performance automatic doors that are flexible and are self-repairing.

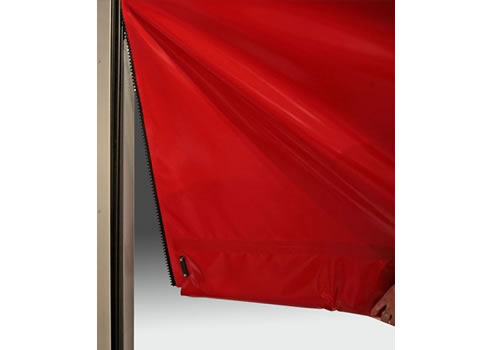

This heavy duty, automatic and flexible door features a special and innovative self-repairing system; should the curtain accidentally get dislodged, it will automatically be recovered with a simple opening and closing operation.

Smart Reset can be supplied in different levels of design, to better satisfy the differing operating requirements and to comply with the different local standards.

The wide range offered features a whole array of unparalleled technological features:

• Hot-galvanised steel available in the RAL versions with oven-baked epoxy coating with smooth finish or fine satin-finish AISI 304 stainless steel, complete with galvanised curtain winding pipe and with vertical uprights fitted with special self-lubricating sliding guide installed on a shockabsorbing spring system
• Provision for roll-up roller casing
• DSC electronic safety device to reverse motion when door is closing if an obstacle is hit
• Heavy duty motor: 3 phase 400 V motor, complete with limit switch and electrically operated hand brake
• IP55 rated electronic panel, complete with open-closestop membrane push-button panel with Autotest function, in compliance with European Directives 2006/42/CE and 89/106/CE
• Provision for manual opening device with operation crank
• INVERTER system on request for different speed, accelerations and braking control
• Full size flexible curtain entirely made of Class 2 selfextinguishing polyester, with no horizontal strengthening parts, which slides inside the side hinges and features self-repairing properties and high resistance to air and wind pressure to 120 km/h.
