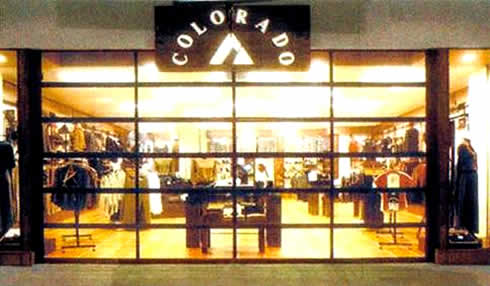

This design offers maximum visibility and excellent security giving an overall end result of a retractable window. Shop fronts, arcades, entrances, corporate buildings, sports complexes, factories.

• Curtain - The curtain shall be constructed from specially designed 65 x 40mm top & side rails and 32 x 40mm mid rails. These sections shall be able to accept standard glazing beads. The area created by the framing shall be glazed with 3mm or 4.5mm Acrylic Polycarbonate, 3mm Toughened Glass or Solid Panels. Panels to be secured by glazing bead, sanoprene or PVC wedges. Panel heights are normally an even division of the opening height (ie:4, 6, or 8) but should not exceed 600mm per panel height.
• Opening Size - up to 4,000h x 5000w.
• Side Guide - 140mm x 60mm extruded aluminium section with twin 3mm tracks.
• Locking - Shall be centrally mounted, two way mortise key lock.
• Brackets - Brackets and tracks shall be mono section configuration.
• Counterbalance - Door shall be balanced by the use of torsion springs connected to a rotating shaft. The shaft ends are attached to cable drums which lift / lower the curtain via a flexible cable.
• Operation - Depending on the size either manual or electrically operated.
• Finish - Anodising & Powdercoated colours.
