Pressurised Sewer Systems from Rob Laine Pumping Solutions

ROB LAINE'S PRESSURISED SEWER SYSTEMS:

Provide the means for transporting sewage to centralisedtreatment plants, or collections main, without the need forgravity sewers.

• Pressurised sewer systems offer many cost savings andenvironmental advantages over conventional gravitysewers:
• Reduced pipe sizes
  -Typically 32mm for a domestic connection
• Follow natural land contours
  -No need for a continuous down-slope grading
• Can be buried more shallowly than conventional sewers
• Can be installed using horizontal underground boring,preventing disturbance to roads, utilities or environmentally-friendly sites
• Constant positive pressure eliminates infiltration ofground or stormwater

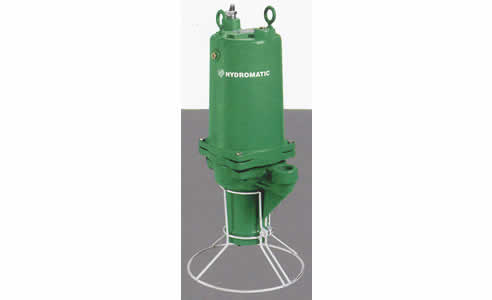

ONLY ROB LAINE'S HYDROMATIC,COMPLETELY SUBMERSIBLE GRINDERSEWAGE PUMPS:

Offer the following combination of features in a domesticpressurised sewer system:

• Patented, hardened stainless steel cutting ring. Whencutting edge eventually wears, the ring is turned over toprovide a new cutting edge, giving a longer cutter life
• 5-year guarantee assurance of quality
• Long-life SiC/SiC seals as standard
• Oil-cooled motor for efficient heat dissipation and longlife
• Powerful high-torque 1.5kW 1450rpm motor for superiorperformance and long life
• High head helical rotor pumping performance with capacitiesup to 65 litres/min and heads up to 65 metres
