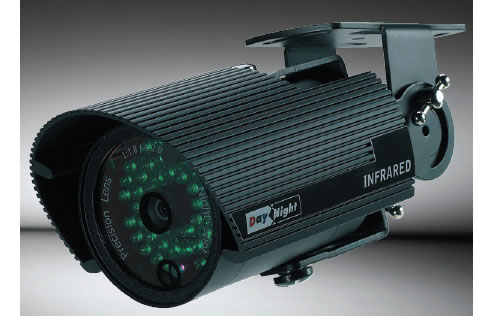

Infared KCC-3000 Camera from Technologix

Varifocal IR Day & Night Camera
KCC-3000

Function

Electronical Features

• IIRP - Intelligent IR Protection technology built-in
• SFOCAS - Self Focus Compensation Against focus shift technology built-in
• Instant image conversion from Color to B/W at 2 Lux (True D/N)
• Long distance view up to 50M at total darkness - Ex-view HAD40M at total darkness - Super HAD
• Extremely accurate color reproduction with 10 bit data process
• Higher resolution of 400TVL - STD Super HAD version
• Higher resolution of 500TVL - Hi-res Super HAD version
• 12VDC/24VAC Line lock Dual power with Non-polarity input
• Surge voltage input protection built-in
• Reverse polarity power input protection built-in
• Built-in DIP SW functions (ALC/ESC, BLC, INT/L.L, AGC, FL)
• CDS Control for IR On/Off

Mechanical Features

• No focus distortion at night
• No color rolling
• Weatherproof (IP67)
• Easy-to-install mechanism
• Compact and beautiful design
• Easy access to Dip SW for function adjustment

Optional Features

• High sensitive external Audio with C-Microphone " - 35dB / mV "
• 850nm Semi-visible IR- Standard (940nm Invisible IR - Option)

Dimensions
