TGSI Integrated Tactile Indicators Supplied Australia Wide

We supply and install both hazard and directional integrated ground surface tactile indicators. All of our integrated products comply with AS/NZS 1428.4:2002, and have subjected to relevant material and physical testing procedures. Products in our integrated range are designed for lasting durability and performance, along with aesthetic appeal. We are licenced to install all TGSI types.

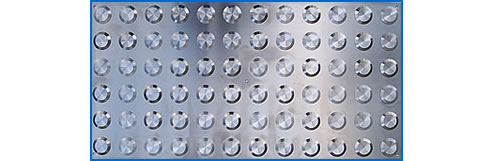

ENDURA STAINLESS STEEL: (ON SALE)

• Dimensions: 300 X 600mm X 6.5mm (1.8mm base), Custom sizes available.
• Colors: Stainless steel lustre
• Type: Hazard
• Location: Indoor, outdoor
• Suitable substrates: Concrete, asphalt, ceramics, stones, woods, carpet, plastics, steel.
• Slip resistance rating: R13, V
• Notes: 316 grade stainless steel, very durable, quick installation, cost effective, features drill holes for dual fixation.

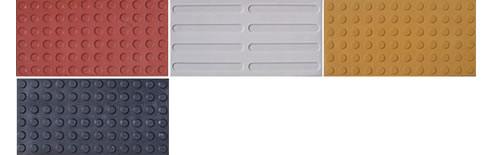

CONCRETE POLYMER:

• Dimensions: 300 X 600mm X 7.0mm (2.0mm base)
• Colours: Ivory, yellow, charcoal, terracotta.
• Type: Hazard and directional
• Location: Outdoors
• Material: Fibre reinforced polymer concrete. Cures to approx. 50MPA.
• Suitable substrates: Concrete, Bitumen.
• Slip resistance rating: R13
• Notes: Durable retrofit outdoor tactile indicator, effective bonding to concrete and asphalt. Economical. Supply & Installation only. Suits high volume applications in outdoor public areas.

PORCELAIN:

• Dimensions: 300 X 300 X 12mm (7mm base)
• Colours: Ivory, yellow, charcoal, grey.
• Type: Directional and hazard
• Location: Outdoor, indoor
• Suitable substrates: Concrete, bitumen, pavers, ceramics
• Slip resistance rating: R12
• Notes: Economical

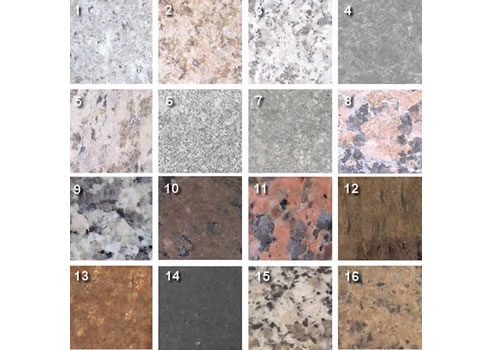

GRANITE:

• 300 X 300 X 17mm (12mm base)
• Colours: Range of natural stone
• Type: Hazard and directional
• Location: Indoor, Outdoor
• Suitable substrate: Granite, Concrete
• Notes: Available as solid integrated piece or with discrete stainless steel inserts incorporated in granite base.
• Also available as conventional paver/ floor tile

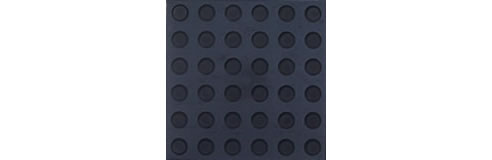

PLASTIC:

• Dimensions: 300 X 300mm X 6.5mm (1.8mm base),
• Colours: Black, yellow, terracotta, ivory
• Type: Hazard and directional
• Location: Indoor, outdoor
• Suitable substrates: Concrete, asphalt, ceramics, stones, woods, carpet, plastics, steel.
• Slip resistance rating: R12
• Notes: Supply & installation only
