Floor Mounted Door Closer from VBH Australia

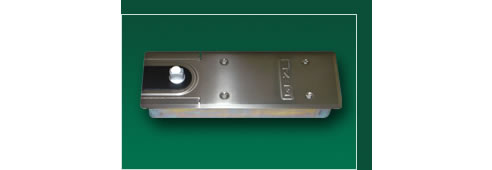

GEZE TS490 FLOOR MOUNTED DOOR CLOSER

Specifications:

Floor-mounted door closer for single and double action doors with reduced depth of 42mm.
For leaf widths up to 150kg and up to 1100mm width.
Flat-tapered, interlocked spindle, for left and right handed doors, with cement box, controlled closing from approx. 175°.

Features:

• Closing force size 3 or adjustable size 1-4 to EN 1154
• Back check
• Adjustable closing speed
• Safety valve preventing deliberate overloading
• Closing range from approx. 175°
• For right and left hand interior single action and double action doors
• For doors up to 950mm and 1100mm wide
• For doors weight up to 150kg

GEZE TS550 FLOOR MOUNTED DOOR CLOSER

Specifications:Floor spring for interior single and double action doors up to 1250mm wide.Flatcone spindle, adjustable closing force, back check, selectable hold-open and galvanised steel concrete box.

Features:

• Adjustable closing force from outside, size 2-5 to EN 1154
• Back check
• Adjustable closing speed
• Safety valve preventing deliberate overloading
• Closing range from approx. 175°
• Galvanised concete box
• Selectable hold-open (80° - 120°)
