Drainpipe with UPVC Channel from Stormtech

38G90

90mm Drainpipe with 38G UPVC Channel.

Product Description

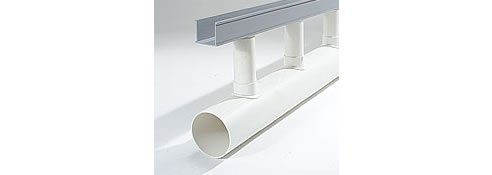

A 38mm wide UPVC channel is connected via downpipes at 200mm intervals to sockets in a 90mm drain below.

This allows the channel to be installed level while the drainpipe is given sufficient fall to be self-cleaning.

The Special Assembly is then completed with a grate from the AR, PH or PS series.

This system is unique in the world. It was recognised for its innovation by a DesignMark at the 2004 Australian International Design Awards.

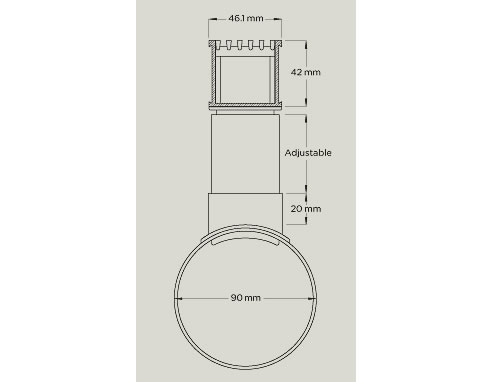

Product Diagram
