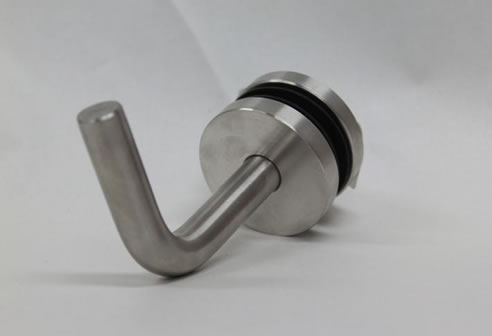

Stainless Steel to Glass to Handrail Fixing Wit from Trident

TRIDENT Stainless steel Glass to Handrail Fixing wit

PRODUCT CODE RH 5012 F - SSS

TECHNICAL DETAILS

Manufactured from 316 Stainless Steel. Hidden M10 internal Thread with Rubber Gaskets and bush.

Unique design allows fixing to glass from 8 to 19mm thick.

The Trident design can be used in the horizontal balustrades or angled staircase handrails applications.

Designed For Fixing Handrails, in Stainless Steel or Steel to glass substrates one 22mm hole is required in the toughened or toughened laminated glass.

Suitable for external and internal applications

FINISHES

No4 Satin Stainless Steel - SSS Other finishes by special order only

Also available in Swivel Saddle design HR 5012 S - SSS
