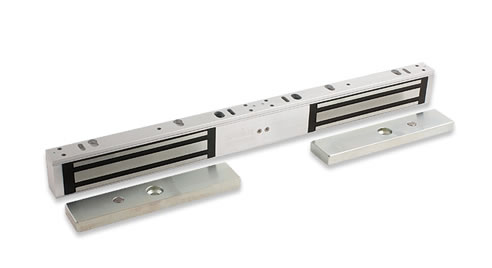

Magnetic Door Lock Double Maglock S01DM from ID-Me

The S01DM Double Maglock features 600lbs holding force per leaf and 12 or 24 Volt DC operation. (AC input possible through a rectifier). Both voltages have the same holding force without temperature rise.

The Hall effect magnetic bond sensor indicates that proper bond exists between the magnet and the armature and that the door is locked. This can be monitored remotely to provide assurance that the door is secure. There is an LED for visual indication of the lock status.

The S01DM has anti-tamper fixings, an anti-residual magnetism kick-off button and a surge & spike protected PCB. There is a full range of optional mounting brackets available.
