LED Fluorescent Tube Replacement from Lighting Matters

MASTER LEDtube T8 GA G13

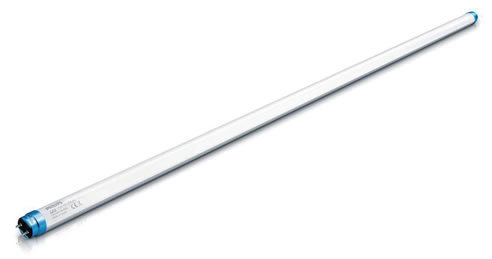

Philips MasterLED - 22W Cool White LED 240V T8 Fluorescent Tube Replacement

Philips MASTER LEDtube integrates a LED light source with a frosted cover design into the traditional linear fluorescent form factor. The new light source offers natural light colours while consumes 22W system energy when used to replace a TL-D 36W with electromagnetic ballast, resulting in up to 50% energy saving. The product's long lifetime and excellent lumen maintenance minimize the hassle of re-lamping while reducing maintenance costs. A complete range is available to replace 600, 900, 1200 and 1500 mm TL-D tubes.

Specification
MASTER LEDtube GA 1200mm

Lumen Rating:
600mm - 750lm
900mm - 1150lm
1200mm - 1500lm
1500mm - 1800lm

Light Quality (CRI): 85 Ra

Colour Temp:
Neutral White 4000K
Cool White 6500K

Beam Angle: 120 °

Wattage:
600mm - 11 watts
900mm - 17 watts
1200mm - 22 watts
1500mm - 25 watts

Lifespan (Ta 35°): 30,000 hours

Base: G13

Features

Thanks to MASTER LEDtube's full safety features, there is no risk of the user suffering electric shock, a danger that can exist with cut-price alternatives sometimes found on the market. More robust and resistant to cold environments than normal fluorescent tubes Easy installation on electromagnetic ballast in just a few minutes Instant 'on': no flicker, no buzz, no EMC problems within system thanks to integrated driver Over 30% increase in optical application efficiency for luminaire/fixture Applicable legislation and approbation: CE, KEMA, VDE, UL, WEEE, EMC and RoHS-compliant

Applications

Offices
Parking lots/covered car parks
Warehouses
Coldrooms
Industrial
Railway stations
Supermarkets/shops

When replacing fluorescent lamps with MASTER LEDtube GA, in some cases the electrical installation has to be changed. Please contact Philips for advice.
